Schmersal 101197338 Round Push Button for Ex Zones 1 and 21, 22.3 mm Mounting Diameter, Stainless Steel

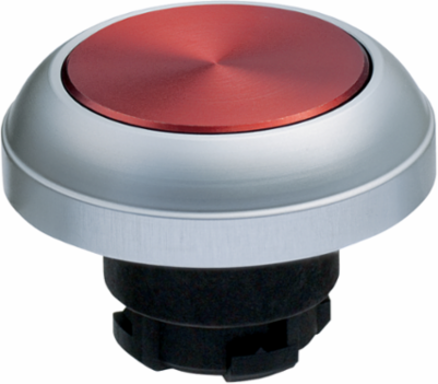

Round Push Button for Ex Zones 1 and 21, 22.3 mm Mounting Diameter, Stainless Steel
Round Push Button for Ex Zones 1 and 21, 22.3 mm Mounting Diameter, Stainless Steel
  • MPN: 101197338
  • PPN: SCM-101197338

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$151.20/ EA

Features

  • Ex-Zone 1 and 21
  • Push button

Specifications

Explosion protection

Explosion protection: regulations
EN IEC 60079-0 | EN IEC 60079-11 | EN IEC 60079-31 | EN IEC 60079-14
Explosion protection category
2D | 2G
Explosion protection zones22 | 2 | 1 | 21
Explosion protection designationII 2G Ex ib IIC Gb | II 2D Ex ib IIIC Db

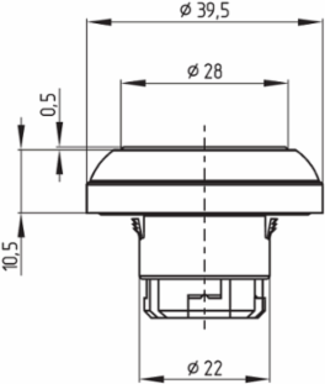

Mechanical data - Dimensions

Mounting diameter
22.3 mm
Thickness of the front panel, maximum6 mm

Safety classification - Safety outputs

B
100,000 Operations

General data

Standards
EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-5
Material of the identification label
Stainless steel (V4A)
Colour of the operating element
Red
DesignRound
Material of the front ringAluminium
Gross weight67 g

Safety classification

Mission time
20 Year(s)

Mechanical data

Actuating stroke
4 mm

Approvals - Standards

Certificates
TÜV | IEC Ex
