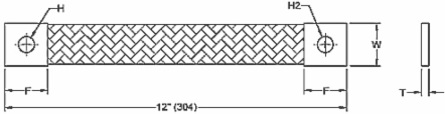

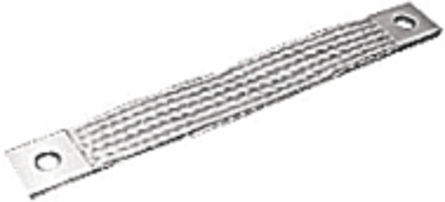

Blackburn EXA050A1254T Extra Flexible Braid Connector 1 Hole 254mm Long Tin-Plated Copper
- MPN: EXA050A1254T
- UPC: 783786809691
- PPN: T-B-EXA050A1254T
CAD
$218.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Extra-flexible Connector. 1 Hole NEMA Standard 500 Ampacity 254 mm Long
Specifications
European Specifications (ETIM)
| ETIM | EC000839 Braid wire |
|---|---|
| Conductor category | Class 6 = very flexible |
| Cable height approx. | 254mm |
| Conductor material | Cu, tinned |
|---|---|
| Shape of conductor | Flat |
North American Specifications (UNSPSC)
| UNSPSC | 39121465 Flexible braid |
|---|---|
| Brand Name | Blackburn |
| Special Features | 1 Hole Nema Pads |
| Standard | IEEE / ANSI C37, 34 |
| Cable Width | 38 mm |
| Conductor Category | Flexible |
| IGCC | 4695 Flexible braid |
|---|---|
| Type | Extra Flexible Braid Connector - 1-Hole |
| Application | Suitable wherever it is necessary to take up expansion, severe vibration and/or misalignment when connecting Transformers, Switchgear, Gererators or Busbars. Extra-Flexible Links for Heavy-Duty Applications. |
| Conductor Material | Tin-Plated Copper |
| Cable Length | 254 mm |
| Shape Of Conductor | Flat |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
