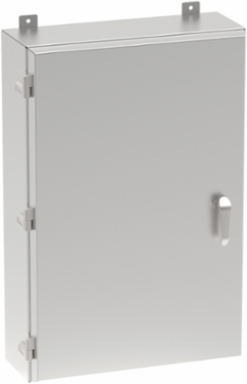

nVent Hoffman XD363008E3PTSS4 Extreme Environments Enclosure 36 Inch x 30 Inch x 8 Inch, Stainless Steel 304
- MPN: XD363008E3PTSS4
- UPC: 783510568948
- PPN: HOF-XD363008E3PTSS4
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Extreme Environments Enclosure is designed for corrosive environments with padlocking handle and lift-off door. This Extreme Environments Enclosure, XD363008E3PTSS4 item measures 36x30x8 with a material of Stainless Steel 304 color Unpainted.
Features
- Seams continuously welded and ground smooth
- EPDM gasket - Temperature range: -50 to 120C (-58 to 248F)
- Silicone gasket - Temperature range: -60 to 250C (-76 to 482F)
- Single-point latching on models less than 24-inches tall
- Three-point latching on models 24-inches or taller
- Door easily removed by loosening set screws
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior Hardware made of corrosion resistant 316 stainless steel
- Bonding provision on door; grounding stud on body
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 762 |
| Protection Rating | NEMA Type 3R |
| Material | Stainless Steel 304 |
| Thickness (T) | 1.98 |
| Replacement Gasket | EPDM |
| Height (H) | 914 |
|---|---|
| Depth (D) | 203 |
| Product Family | Extreme Environments |
| Finish | Brushed #4 |
| Data Pocket | Large |
| Weight | 77 |
