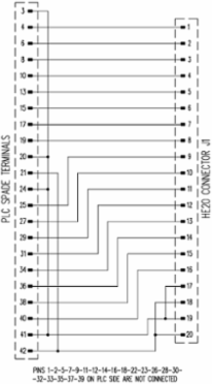

Weidmuller 1986040000 FAD S5135 HE20 16IO R
- MPN: 1986040000
- PPN: WDM-1986040000
CAD
$300.28
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FAD S5135 HE20 16IO R
Specifications
Approvals
| Approvals | CE |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 283 mm |
|---|---|
| Width | 20 mm |
| Height | 36.4 mm |
| Net weight | 610.332 g |
| Length (inches) | 11.142 inch |
|---|---|
| Width (inches) | 0.787 inch |
| Height (inches) | 1.433 inch |
Insulation Coordination (En50178)
| According to | DIN EN 50178 |
|---|---|
| Surge voltage category | III |
| Insulation test voltage | 0.35 kVAC |
| Rated insulation voltage | < 50 V AC |
|---|---|
| Pollution severity level | 2 |
Ratings Data
| Operating voltage | 30 V AC / 60 V DC |
|---|---|
| Max. current per byte | 2 A |
| Max. current per channel | 1 A |
|---|---|
| Total operating current | 3 A |
Connection Data
| Connection (field side) | Plug-in connectors according to IEC 60603-13 / DIN 41651 20p |
|---|
Classifications
| ETIM 6.0 | EC002584 |
|---|---|
| eClass 9.0 | 27-33-02-92 |
| eClass 10.0 | 27-33-02-92 |
| ETIM 7.0 | EC002584 |
|---|---|
| eClass 9.1 | 27-24-22-92 |
Temperatures
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 60 °C |
| Operating temperature | -25...50 °C |
| Operating temperature, min. | -25 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40...60 °C |
