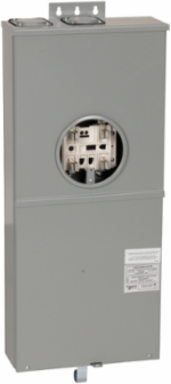

Square D MH2200 Enclosure Farm Power, NQNF, 200A, 22in H
- MPN: MH2200
- UPC: 785901309345
- PPN: SCH-MH2200
CAD
$2528.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Enclosure Farm Power, NQNF, 200A, 22in H
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Canada
Complementary Attributes
- Meter Socket Rated Current
- 200 A
Important Information Attributes
- Service Feed Location
- UG, OH
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 26 kg CO2 eq., 26.11988046950605
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 110 kg CO2 eq., 109.54145973734418
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2014
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Awg Gauge
- 2 AWG...250 kcmil aluminium/copper)line side6 AWG...250 kcmil aluminium/copper)service ground
- Enclosure Material
- steel
- Hub Type
- A-L ACPL closing plate
- Number Of Jaws
- 4 with jaw release
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- No
- Wiring Configuration
- 3-wire
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity origin
- Recyclability Potential In %
- 97
- Certificate Agency
- CSA
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109150
Carbon Footprint Of The Distribution Phase [A4]9.216446738424958, 9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00001779007699607197, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-06-22
Stocking FlagN
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Electrical Connectionlugs 0.5" hex
Energy Efficiency OptimizedFalse
Meter Socket Typeringed
Phase1 phase
Product Or Component TypeMeter Socket
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint145 kg CO2 eq.
Pep CodeENVPEP2510012_V1-EN
Pep Verification Date2025-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal22 in
[Ue] Rated Operational Voltage100/240 V AC
Package Weight(Lbs)17.69 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 144.87780473535219
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2510012_V1-EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2510012_V1-EN
Nema Degree Of ProtectionNEMA 3R
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- 1 phase
Product Or Component TypeMeter Socket
Output Attributes
- Bypass Type
- no bypass
