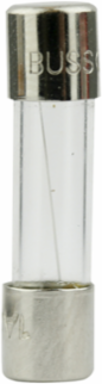

Bussmann GMA-7-R Fast-Acting Glass Fuse 7A 125 Vac, 0.25 Inch Height, Non-Indicating
- MPN: GMA-7-R
- UPC: 051712648042
- PPN: BUS-GMA-7-R
CAD
$1.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Fast-Acting Glass Fuse 7A 125 Vac, 0.25 Inch Height, Non-Indicating
Features
- Engineered with a fast-acting, quick-blow response time, the GMA-7-R opens within a maximum of 2 minutes at 200% overcurrent to instantly isolate electrical faults. This ultra-rapid performance safely shields delicate microprocessors, power supplies, and control circuit boards from catastrophic thermal damage before costly downstream components can fail.
- Built with the globally standard 5x20mm miniature cylindrical footprint, this ferrule end-to-end glass fuse guarantees a perfect physical fit into matching board-mounted fuse clips, inline holders, and panel-mount blocks. This design eliminates installation guesswork and physical measurement confusion, allowing maintenance technicians to execute effortless field replacements across a broad range of industrial electronics and test equipment.
- Delivering a precise 7A current rating and a 125V AC threshold, this fuse provides a targeted line of defense with a 200-amp interrupting capacity at its maximum voltage limit. It offers an ideal protective baseline for localized industrial control panels, preventing localized high-current overloads from disrupting upstream electrical networks while maintaining an ultra-low DC cold resistance of just 0.012 Ohms.
- Manufactured with premium glass tube construction and heavy-duty nickel-plated brass endcaps, this miniature fuse delivers minimal voltage drop and superior electrical contact. The durable plating actively prevents surface oxidation, tarnish, and terminal degradation over extended operating periods, ensuring reliable fault protection in high-vibration cabinets or humid facility environments.
Documentation & Downloads
Specifications
Additional
- Voltage
- 125 Vac, 32 Vdc
- Response Time
- 60 min max at 135%, 2 min max at 200%
- Length
- 0.75 in
- Height
- 0.25 in
- Connection
- Ferrule end X ferrule end
- Fuse Indicator
- Non Indicating
- Application
- Electronic circuits
Amperage7A
Interrupt Rating200 kAIC at 125 Vac
Width0.25 in
MaterialGlass tube, nickel-plated brass endcaps, silver-plated
Weight0.002 lb
TypeElectronic - small dimension
ComplianceCE Marked, RoHS, UL Listed, CSA Certified
