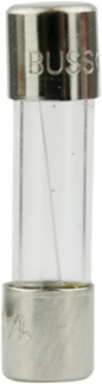

Bussmann GMA-10-R Fast-Acting Fuse, 10A, 0.75 Inch Length, 0.25 Inch Width, 125 Vac
- MPN: GMA-10-R
- UPC: 051712647847
- PPN: BUS-GMA-10-R
CAD
$1.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Fast-Acting Fuse, 10A, 0.75 Inch Length, 0.25 Inch Width, 125 Vac
Features
- Engineered with standard 5x20mm (0.2" x 0.79") metric dimensions and smooth ferrule terminal ends, this Bussmann cartridge fuse snaps securely into compatible PCB clips and panel-mount holders. Matching the exact OEM physical footprint prevents loose connections, making it the perfect direct replacement for consumer electronics, small household appliances, and specialized testing equipment.
- Unlike time-delay fuses, this fast-blow element is engineered to open the circuit instantly the moment electrical current exceeds its safe threshold. This highly responsive rapid action prevents catastrophic heat damage to delicate electronic components, ensuring your valuable printed circuit boards (PCBs) and power supplies remain safe from unexpected power spikes.
- Safely rated to handle up to 10 Amps at 125 volts AC, this miniature glass fuse delivers highly reliable overcurrent protection for specialized low-voltage applications. The transparent glass tube body allows technicians and DIY hobbyists to perform an immediate visual inspection of the internal filament, eliminating the need for a multimeter and saving frustrating troubleshooting time when identifying a dead circuit.
- Meeting stringent UL and CSA 248-14 safety standards, this Eaton Bussmann fuse boasts a 200A short circuit interrupt rating to safely clear severe electrical faults without the glass body shattering. Utilizing fully certified hardware with corrosion-resistant, nickel-plated brass endcaps ensures your electronic repairs are entirely safe, strictly compliant, and built for lasting reliability.
Documentation & Downloads
Specifications
Additional
- Amperage Rating
- 10A
- Interrupting Rating
- 200A at 125 Vac
- Weight
- 0.002 lb
- Material
- Glass tube, nickel-plated brass endcaps, silver-plated
- Connection
- Ferrule end X ferrule end
- Fuse Indicator
- Non Indicating
- Compliance
- RoHS, CE, UL Listed, UL Recognized, CSA Certified, PSE Approval
Voltage Rating125 Vac, 32 Vdc
Response Time60 min max at 135%, 2 min max at 200%
Size5 mm x 20 mm
Fuse TypeFast-Acting
TypeElectronic - small dimension
ApplicationElectronic circuits
