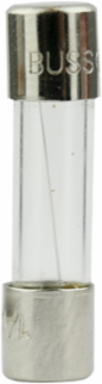

Bussmann GMA-250-R Fast-Acting Fuse 250A 32 Vdc .75 Inch Length
- MPN: GMA-250-R
- UPC: 051712647915
- PPN: BUS-GMA-250-R
CAD
$1.30
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This commercial-grade electronic fuse is engineered with a continuous electrical rating of precisely 250 Milliamps (0.250 A). It serves as a highly precise, low-current sacrificial safety link within delicate instrument loops, safeguarding sensitive micro-electronics and printed circuit boards from minor, prolonged overcurrent states.
Features
- This miniature glass fuse carries a maximum operational voltage rating of 250V AC. It delivers a calibrated short-circuit interrupting capacity of up to 35 Amps at 250V AC (and up to 10,000 Amps at 125V AC), ensuring the internal element safely isolates low-energy electrical faults before they can damage surrounding component architecture.
- This miniature glass fuse carries a maximum operational voltage rating of 250V AC. It delivers a calibrated short-circuit interrupting capacity of up to 35 Amps at 250V AC (and up to 10,000 Amps at 125V AC), ensuring the internal element safely isolates low-energy electrical faults before they can damage surrounding component architecture.
- Designated as a fast-acting (quick-acting) fuse. The internal wire element is engineered to melt almost instantaneously upon detecting a short circuit or severe overload, providing critical high-speed thermal protection for digital display meters, sensory circuits, and solid-state controllers that cannot survive transient electrical surges.
- This fuse utilizes the universally common European standard 5mm x 20mm approximately 0.2-inch x 0.79-inch miniature cartridge geometry. This compact physical footprint allows panel builders to deploy dense protection layout arrangements using standard 5mm DIN rail fuse holders, inline wire clips, or panel-mount twist-caps.
- Built with a premium, crystal-clear glass tube housing and high-conductivity nickel-plated brass endcaps, this device allows maintenance technicians to perform instantaneous visual inspections. The transparent body lets you immediately verify a blown fuse condition by checking for a broken internal filament or metallic discoloration, cutting down diagnostic troubleshooting times on the factory floor.
- The "-R" suffix guarantees that this component is fully RoHS compliant, meeting global environmental standards for lead-free construction. Additionally, it is UL Listed (Guide JDYX2, File E19180) and CSA Certified (Class 1422-30, File 53787), providing machine builders with a fully certified, code-compliant safety component that smoothly passes municipal field inspections.
Documentation & Downloads
Specifications
Additional
- Amperage
- 250 A
- Response Time
- 60 min max at 135%, 2 min max at 200%
- Width
- 0.25 in
- Connection
- Ferrule end x ferrule end
- Material
- Glass tube, silver-plated and nickel-plated brass endcaps
- Compliance
- RoHS, CE
Voltage32 Vdc
Length0.75 in
Height0.25 in
TypeElectronic - small dimension
Fuse IndicatorNon Indicating
