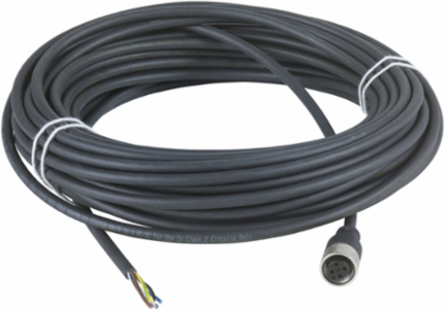

Telemecanique Sensors XZCP1164L15 Con. M12, Female, Straight, 5 pins, 15 m pre wired
- MPN: XZCP1164L15
- PPN: TES-XZCP1164L15
- UNSPSC: 39122230
CAD
$122.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XZ Connection Cable has a straight 5-pin M12 connector with a 15 meter PUR cable connection with bare end flying leads. It has a metal enclosure with IP65 / IP67 / IP69K degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with cULus standard. It is compatible with XUSL2E, XUSL4E and XUSL4M safety light curtains transmitter. It is designed to be used in static condition at a temperature from -40°C to +90°C.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Cabling components
- Accessory / Separate Part Type
- pre-wired connectors
Accessory / Separate Part Categorycabling accessory
Complementary
- Collar Material
- metal
- Cable Outer Diameter
- 5.9 mm
- Wire Insulation Material
- PUR
- Cable Connector Fixing
- screw-on
- Line Rated Current
- 4 A
- Status Led
- without
Electrical Connectionstraight female connector M12, 5 pins (included earth pin)
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage30 V AC || 36 V DC
Cable Length15 m
Cable Composition5 x 0.34 mm²
Contact Resistance5000 µOhm
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -40-80 °C
Ambient Air Temperature For Operation-40-80 °C static || -5-80 °C flexing
Ip Degree Of ProtectionIP65 || IP69K || IP67
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
