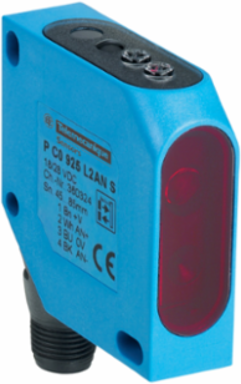

Telemecanique Sensors XUYPCO925L2ANSP Photoelectric sensors XU, XUY, diffuse, analog laser, Sn 85 mm, 12...24 VDC, M12
- MPN: XUYPCO925L2ANSP
- PPN: TES-XUYPCO925L2ANSP
CAD
$1283.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Photoelectric sensors XU, XUY, diffuse, analog laser, Sn 85 mm, 12...24 VDC, M12
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | 1 male connector M12, 4 pins |
|---|---|
| Emission | red laser, pulsed 650 nm - class 1 IEC 825-1 |
| Material | plastic |
| Wiring Technique | 4-wire |
| Product Specific Application | measuring thickness of mechanical parts || position control of robot arm |
| Sensor Design | compact 50 x 50 |
| Electronic Sensor Type | photo-electric sensor |
| Range Of Product | Telemecanique Photoelectric sensors XU |
|---|---|
| Sensor Name | XUY |
| Analogue Output Range | 0...10 V |
| Series Name | Application material handling |
| Detection System | diffuse |
| Supply Circuit Type | DC |
| [Sn] Nominal Sensing Distance | 45-85 mm |
Complementary
| Current Consumption | 35 mA no-load |
|---|---|
| Linearity | < 1 % |
| Setting-Up | parametering by buttons |
| Maximum Voltage Drop | <2.4 V closed state) |
| Pulse Frequency | 6 kHz |
| Resolution | 20 µm |
| Switching Capacity In Ma | 3 mA overload and short-circuit protection) |
| Maximum Delay Response | 30 ms output circuit |
| Switching Frequency | < 40 Hz |
|---|---|
| Status Led | supply on 1 LED green) || dirty 1 LED red) |
| Spot Diameter | 0.8 mm at 65 mm |
| Spot Dimension | Ø 0.8 mm at 65 mm |
| Net Weight | 0.057 kg |
| Supply Voltage Limits | 18-28 V DC |
| Enclosure Material | ABS, anti-shock |
| [Us] Rated Supply Voltage | 24 V DC reverse polarity protection |
Environment
| Product Certifications | CE |
|---|---|
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -20-60 °C |
| Immunity To Ambient Light | 5000 lux natural light |
| Ambient Air Temperature For Operation | 0-45 °C |
|---|---|
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Ip Degree Of Protection | IP67 IEC 60529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Mercury Free | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
