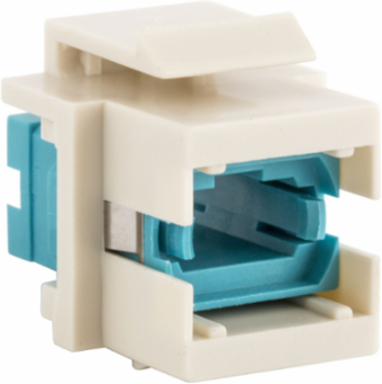

Hubbell Premise Wiring SFFMTPAQOW Fiber Optic Connector, MTP-Simplex, 0.58 Inch X 0.76 Inch, Aqua, Flush Mount
Hubbell Premise Wiring SFFMTPAQOW Fiber Optic Connector, MTP-Simplex, 0.58 Inch X 0.76 Inch, Aqua, Flush Mount
- MPN: SFFMTPAQOW
- UPC: 662620303321
- PPN: HBL-SFFMTPAQOW
- UNSPSC: 43223310
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$37.58/ EA
Description
Fiber Optic Connectors, Snap-Fit,Flush, MTP-Simplex, Aqua, Office White Housing.
Features
- Snap Fit
- Office White Housing
- Flush
- MPO
- Aqua Adapter
- Standard Product
Specifications
Specifications
- Country of Origin
- Taiwan
- Width
- 0.600 in
- Size
- .58" X .76"
- Color
- Aqua
- Mounting
- Flush
- Service Life
- 500 matings
- Standard
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-5
- Temperature Rating
- 0C to 70C
- Mounting Type
- Flush
- Class Code
- A68
- Harmonization Code
- 8536700000
- Replaced Catalog Number
- SFFMTPAQLA
- Material - Mounting Hardware
- Snap-In
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
Color - HousingOffice White
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-5
ApplicationData Outlet
Insertion Loss0.75 dB
Repeatability0.1 dB
Special FeaturesStandard Product
Sub BrandOptiChannel
ConnectivityReceptacle
StyleMPO
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA68A690
MaterialThermoplastic
BOX SIZE4.400x3.500x6.400 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack00662620303321
Case Weight0.000
