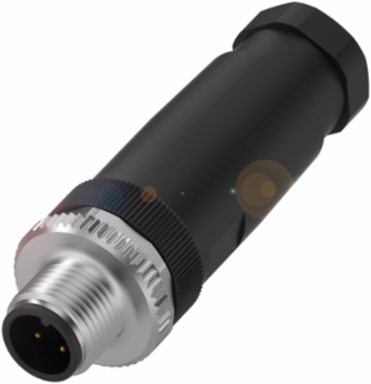

Balluff BCC M434-0000-2A-000-41X475-000 Field Attachables M12x1 4-Pin, IP67, -40...85 °C
Balluff BCC M434-0000-2A-000-41X475-000 Field Attachables M12x1 4-Pin, IP67, -40...85 °C
- MPN: BCC M434-0000-2A-000-41X475-000
- PPN: BAL-BCC06M4
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$12.31/ EA
Description
Engineered for durability and reliability, the BCC06M4 field attachables from Balluff are designed to meet the demanding needs of industrial applications. With a robust IP67 rating, these connectors ensure protection against dust and water ingress, making them suitable for harsh environments with ambient temperatures ranging from -40°C to 85°C. Featuring screw terminal wire mounting and accommodating up to four connectable contacts, they support an operating voltage of up to 250 VDC / 250 VAC and a rated current of 4.0 A at 40°C, providing versatility and efficiency in your connections. The M12x1 male connector is designed for easy integration, with a cable diameter range of 4 to 6 mm and a connection cross-section of 0.14 to 0.75 mm², ensuring a secure and reliable setup for your electrical systems.
Specifications
- Operating Voltage
- 250 VDC / 250 VAC
- Temperature Range
- -40 to 85 C
- Number of Pins
- 4
- Cable Diameter Range
- 4 to 6 mm
- Type of Wire Mounting
- Screw terminals
- Approval/Conformity
- CE, cURus, WEEE
Rated Current4.0 A at 40 C
IP RatingIP67
Connector TypeM12x1 Male, straight, 4-pin, A-coded
Connection Cross-Section0.14 to 0.75 mm2
Country of OriginGermany
