Schneider Electric NSYFXT6050 Fixed Tray 482mm x 390mm, Steel, 150kg Load Capacity
Schneider Electric NSYFXT6050 Fixed Tray 482mm x 390mm, Steel, 150kg Load Capacity
- MPN: NSYFXT6050
- PPN: SCH-NSYFXT6050
- UNSPSC: 39121327
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$92.80/ EA
Description

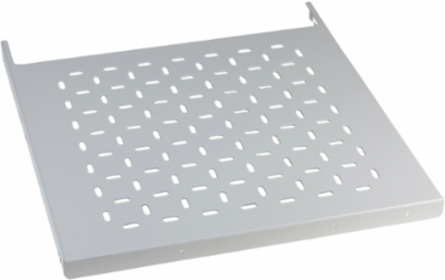

Spacial SM fixed tray for enclosure of W is 600 x D is 500 mm. Tray dimensions are H is 30 x W is 482 x D is 390 mm. Maximum Load 150 kg.
Features
- PanelSet SF: Direct fixing to the structure.
- PanelSet SFX: Instalation possible only with universal cross-rails, see page 274.
- PanelSet SM: Fixing by means of adaptation profiles and 40 mm universal cross-rails (1 row) in vertical position.
- Provided with cut-outs for improving air circulation inside.
- Material: Steel
- Fixing on depth cross-rails.
- Finish: Painted with epoxy polyester resin
- Depth-adjustable tray with a pitch of 25 mm.
- Color: RAL 7035 grey
- Maximum load: 150 kg direct fixed to the structure, 40 kg when universal cross-rails are used
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Complementary Attributes
- Maximum Load
- 150 kg evenly distributed
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 fixed tray, fixing elements
- Mounting Support
- direct to the structure, 40 mm cross rails
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 7 kg CO2 eq., 6.972613993
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 13 kg CO2 eq., 12.88762137
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Material
- steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Accessory Separate Part Category2
- installation accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Adjustment
- adjustable in depth every 25 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- W: 600 mm D: 500 mm, - W: 600 mm D: 500 mm, - W: 600 mm D: 500 mm, - W: 600 mm D: 500 mm, - W: 600 mm D: 500 mm, - W: 600 mm D: 500 mm
Carbon Footprint Of The Distribution Phase A40.570949914, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.657663024, 0.7 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Energy Efficiency OptimizedFalse
Package Weight Lbs2.950 kg
Product Or Component Typefixed tray
RangePanelSeT
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint21 kg CO2 eq.
Medium DescFixed tray, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure W600 D500mm, steel
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 21.0888483
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- fixed tray
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 390 mm
