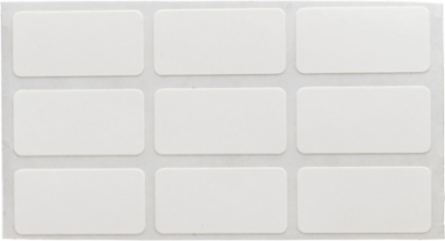

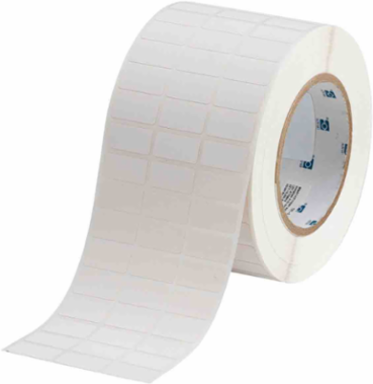

Brady THT-5-472-10 Flame Retardant Wire Wraps, 0.5" H x 1" W, Roll of 10000 Labels, White
- MPN: THT-5-472-10
- UPC: 662820986447
- PPN: BRD-THT-5-472-10
- UNSPSC: 55121612
CAD
$1019.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

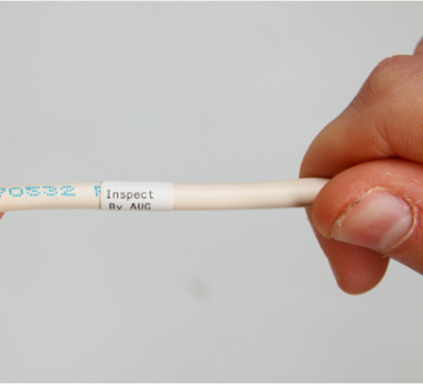

Flame Retardant Wire Wraps (B-472) are ideal for cable and wire bundle applications and label applications where self-extinguishing properties are required.
Features
- Polyimide material specifically designed to self-extinguish and prevent flames from propagating
- Matte finish material with permanent acrylic adhesive can be thermal transfer printed or dot matrix printed
- Service temperature of -40°F to 212°F (-40°C to 100°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- White
- Diagram
- Icon 26 (hexagon)
- Finish
- Matte
- Format
- IPE
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Quantity per Row
- 3
- Ribbon Series
- R4300; R7950
- Software
- CodeSoft; LabelMark
- Suggested Ribbon Series
- R4300; R6200
- Total Quantity
- 10000
- Adhesive (Y/N)
- Yes
- Brady Material Number
- B-472
- Material
- Polyimide
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Dimensions (Metric)
- 25.40 mm W x 12.70 mm H
- Height (in/ft/yd)
- 0.5 in
- Horizontal Repeat
- 1.08 in
- Label/Tape Size (in/ft/yd)
- 0.5 in H x 1 in W
- Maximum Service Temperature °F
- 212 °F
- Maximum Wire Diameter (mm/cm/m)
- 4.06 mm
- Minimum Service Temperature °F
- -94 °F
- Minimum Wire Diameter (mm/cm/m)
- 1.52 mm
- Printable Area Dimensions (Metric)
- 25.4 mm W
- Printable Area Width (mm/cm/m)
- 25.4 mm
- Size - Width (mm)
- 25.40 mm
- Thickness (mm/cm/m)
- 0.081 mm
- Vertical Repeat (mm)
- 15.24 mm
- Web Width (mm/cm/m)
- 85.09 mm
- Width (mm/cm/m)
- 25.4 mm
Brand NameBrady®
Compatible Surface TypesGeneral
Enables Industry ComplianceASTM B 117; ASTM D 1000; ASTM D 2979; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AS-81531
For Use with PrinterBBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll10000
Recommended RibbonIP-R4307; R4307
ShapeRectangle
Special PropertiesSelf-Extinguishing
Total Qty per Pack10000 Label(s) / Pack
Trade NameUltraTemp®
Adhesive TypePermanent Acrylic
Label PropertiesSelf Laminating Labels & Wraps
Material PropertiesFlame-retardant
SAP B-NumberB-472
Dimensions0.5 in H x 1 in W
Dimensions 20.5 in H x 1 in W
Height (mm/cm/m)12.70 mm
Horizontal Repeat (mm)27.31 mm
Maximum Service Temperature °C100 °C
Maximum Wire Diameter (in/ft/yd)0.16 in
Minimum Service Temperature °C-70 °C
Minimum Wire Diameter (in/ft/yd)0.06 in
Printable Area Dimensions1 in W
Printable Area Width (in/ft/yd)1 in
Sign Size-General0.5 in x 1 in
Thickness (in/ft/yd)0.0032 in
Vertical Repeat0.6 in
Web Width (in/ft/yd)3.35 in
Width (in/ft/yd)1 in
Wire Diameter Range0.06 in to 0.16 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
