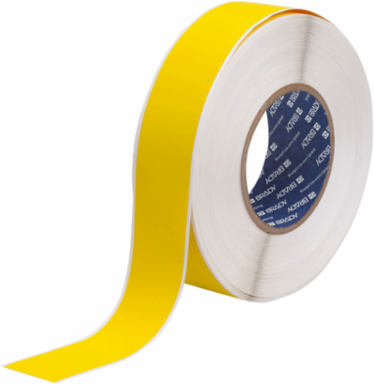

Brady THT-105-472-YL Flame Retardant Wire Wraps, 1.5" W x 300' L, Yellow
- MPN: THT-105-472-YL
- UPC: 662820986560
- PPN: BRD-THT-105-472-YL
- UNSPSC: 55121612
CAD
$905.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

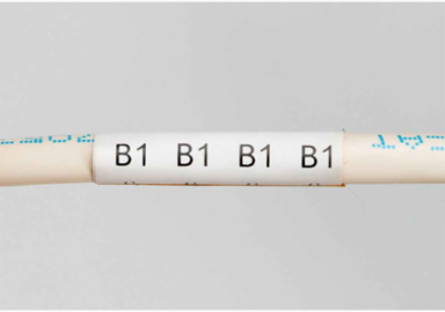

Flame Retardant Wire Wraps (B-472) are ideal for cable and wire bundle applications and label applications where self-extinguishing properties are required.
Features
- Polyimide material specifically designed to self-extinguish and prevent flames from propagating
- Matte finish material with permanent acrylic adhesive can be thermal transfer printed or dot matrix printed
- Service temperature of -40°F to 212°F (-40°C to 100°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Data and Telecommunications Labeling; Electrical Labeling; Wire and Cable Labeling
- Color
- Yellow
- Diagram
- Icon 40 (infinity)
- Finish
- Matte
- Format
- IPE
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Recommended Ribbon
- IP-R4307; R4307
- Shape
- Continuous
- Special Properties
- Self-Extinguishing
- Total Qty per Pack
- 1 Roll(s) / Pack
- Adhesive (Y/N)
- Yes
- Brady Material Number
- B-472
- Material
- Polyimide
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Label/Tape Size (in/ft/yd)
- 1.5 in W x 300 ft L
- Maximum Service Temperature °F
- 212 °F
- Minimum Service Temperature °F
- -94 °F
- Printable Area Width (mm/cm/m)
- 38.10 mm
- Roll Length (in/ft/yd)
- 300 ft
- Roll Width (in/ft/yd)
- 1.5 in
- Roll/Tape Size (mm/cm/m)
- 38.1 mm W x 91.44 m L
- Size - Width (mm)
- 38.10 mm
- Thickness (mm/cm/m)
- 0.081 mm
Brand NameBrady®
Compatible Surface TypesGeneral
Enables Industry ComplianceASTM B 117; ASTM D 1000; ASTM D 2979; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AS-81531
For Use with PrinterBBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Row1
Ribbon SeriesR4300; R7950
SoftwareCodeSoft; LabelMark
Suggested Ribbon SeriesR4300
Trade NameUltraTemp®
Adhesive TypePermanent Acrylic
Label PropertiesSelf Laminating Labels & Wraps
Material PropertiesFlame-retardant
SAP B-NumberB-472
Dimensions (Metric)38.10 mm W x 91.44 m L
Maximum Service Temperature °C100 °C
Minimum Service Temperature °C-70 °C
Printable Area Dimensions (Metric)38.10 mm W
Ribbon Size (in/ft/yd)300 ft L
Roll Length (mm/cm/m)91.44 m
Roll Width (mm/cm/m)38.1 mm
Size - Length (m)91.44 m
Thickness (in/ft/yd)0.0032 in
Web Width (mm/cm/m)43.18 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
