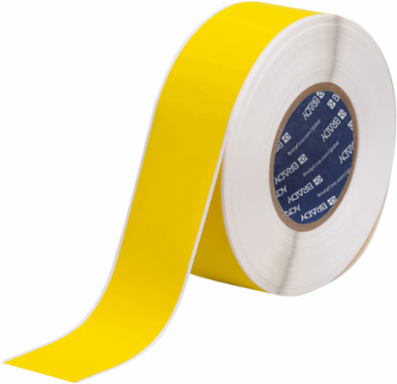

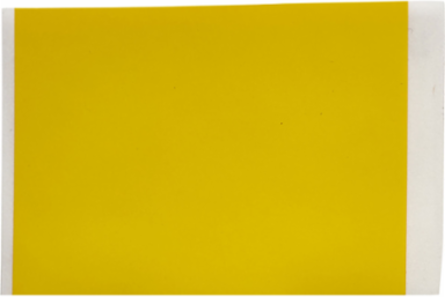

Brady THT-106-472-YL Flame Retardant Wire Wraps, 2" W x 300' L, Yellow
- MPN: THT-106-472-YL
- UPC: 662820986577
- PPN: BRD-THT-106-472-YL
- UNSPSC: 55121612
CAD
$1199.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

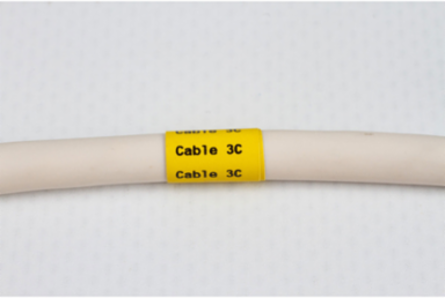

Flame Retardant Wire Wraps (B-472) are ideal for cable and wire bundle applications and label applications where self-extinguishing properties are required.
Features
- Polyimide material specifically designed to self-extinguish and prevent flames from propagating
- Matte finish material with permanent acrylic adhesive can be thermal transfer printed or dot matrix printed
- Service temperature of -40°F to 212°F (-40°C to 100°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Data and Telecommunications Labeling; Electrical Labeling; Wire and Cable Labeling
- Color
- Yellow
- Enables Industry Compliance
- ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AS-81531
- For Use with Printer
- BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer Compatibility
- BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
- Quantity per Row
- 1
- Ribbon Series
- R4300; R7950
- Software
- CodeSoft; LabelMark
- Suggested Ribbon Series
- R4300
- Trade Name
- UltraTemp®
- Adhesive Type
- Permanent Acrylic
- Label Properties
- Self Laminating Labels & Wraps
- Material Properties
- Flame-retardant
- SAP B-Number
- B-472
- Dimensions (Metric)
- 50.80 mm W x 91.44 m L
- Maximum Service Temperature °C
- 100 °C
- Minimum Service Temperature °C
- -70 °C
- Printable Area Dimensions (Metric)
- 50.80 mm W
- Ribbon Size (in/ft/yd)
- 300 ft L
- Roll Length (mm/cm/m)
- 91.44 m
- Roll Width (mm/cm/m)
- 50.8 mm
- Size - Length (m)
- 91.44 m
- Thickness (in/ft/yd)
- 0.0032 in
- Web Width (mm/cm/m)
- 55.88 mm
Brand NameBrady®
Compatible Surface TypesGeneral
FinishMatte
FormatIPE
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP12; i7100; i5100
Recommended RibbonIP-R4307; R4307
ShapeContinuous
Special PropertiesSelf-Extinguishing
Total Qty per Pack1 Roll(s) / Pack
Adhesive (Y/N)Yes
Brady Material NumberB-472
MaterialPolyimide
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant
Core Diameter (mm/cm/m)76.20 mm
Label/Tape Size (in/ft/yd)2 in W x 300 ft L
Maximum Service Temperature °F212 °F
Minimum Service Temperature °F-94 °F
Printable Area Width (mm/cm/m)50.80 mm
Roll Length (in/ft/yd)300 ft
Roll Width (in/ft/yd)2 in
Roll/Tape Size (mm/cm/m)50.8 mm W x 91.44 m L
Size - Width (mm)50.80 mm
Thickness (mm/cm/m)0.081 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
