Blackburn

Blackburn FB2D12-1 FLEX.BRAID 153.6KCMIL,12 INL,1 HOLE

FLEX.BRAID 153.6KCMIL,12 INL,1 HOLE
  • MPN: FB2D12-1
  • UPC: 783786419579
  • PPN: T-B-FB2D12-1
  • UNSPSC: 39121465

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$248.09/ EA

Description

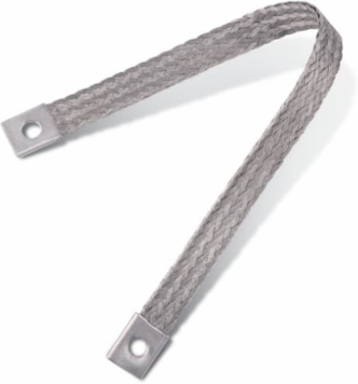

Tinned Copper Flexible Braid Connector for Grounding, 12 inch length x 1.25 inch wide x .25 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1.25 inch wide x 2.5 inch long. One 0.438 inch Diameter hole on each Pad. 153600 Circular Mil Area.

Specifications

Additional Information

Application
For continuous current, grounding and bonding applications
Cable Length
12 in
Conductor Shape
Flat
Material of Conductor
Tin-Plated Copper
Product Type
Flexible Braid Connector - 1-Hole
Standards
UL E3060, CSA LR29625
Brand / LabelBoreal
Conductor CategoryFlexible
Effective Date20040120
Product NameCOPPER FLEXIBLE BRAID CONNECTOR
Special FunctionsTin-Plated Copper Braids and Ferrules for High Conductivity and Corrosion Resistance. Enables Linear Expansion, Equipment Vibration and Offset Connections.

Ordering

Country of Origin
United States (US)Canada (CA)
Selling Unit of Measureeach

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4695 >> Flexible braid
