Adaptaflex SPLHC63/10M Extreme Temperature Flexible Conduit 63mm, 10 Meter, Liquid Tight, Galvanized Steel Core
Adaptaflex SPLHC63/10M Extreme Temperature Flexible Conduit 63mm, 10 Meter, Liquid Tight, Galvanized Steel Core
- MPN: SPLHC63/10M
- UPC: 5020963018114
- PPN: T-B-SPLHC63/10M
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1741.98/ EA
Description

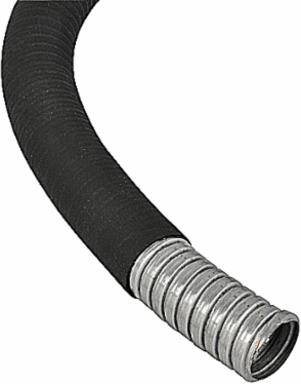

Liquid Tight, Extreme Temperature Covered Steel Flexible Conduit, Medium Flexibility, Nominal Conduit Size 63mm, Outside Diameter 59.7mm, Inside Diameter 51.6mm, Static Bend Radius 345mm, Reel Length 10 Meters, Thermoplastic Rubber Cover with Galvanised Steel Core, Black
Features
- Very high UV resistance
- Very High flexibility
- High fatigue life
- High mechanical strength
- Self extinguishing and halogen free
- Machine Building
- Extreme Temperature Environments
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Adaptaflex
- Application
- Liquid Tight - Extreme Temperature Environments
- Outside Diameter
- 59.7mm
- Length
- 10 m
- Flexibility
- Medium
- Color
- Black
IGCC5543 Liquid Tight Conduit
TypeExtreme Temperature Flexible Conduit
Trade Size2 Inch/NC 63mm
Inside Diameter51.6mm
Radius345mm
MaterialGalvanized Steel Core with Thermoplastic Rubber Cover
European Specifications (ETIM)
- ETIM
- EC001179 Protective metallic hose
- Outer diameter
- 59.7mm
- Material
- Steel
- Sheathing material 1st coating
- Other
- Degree of protection (IP)
- IP68
- Colour
- Black
Nominal diameter63mm
Inner diameter51.6mm
Surface protectionOther
Operating temperature-65-+135°C
Weight1.5kg/m
Bending strengthFlexible
Packaging
- Outer Quantity
- 1
- Weight Uom
- 33.07 lbs. Each
Outer Dimensions (inches)1x1x1
