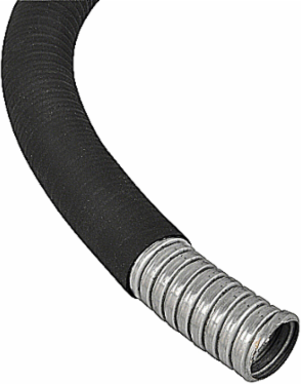

Adaptaflex SPLHC20/50M Extreme Temperature Flexible Conduit 20mm, Liquid Tight, 50 Meters Length

MPN: SPLHC20/50M
UPC: 786210245652
PPN: T-B-SPLHC20/50M

$2107.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Liquid Tight, Extreme Temperature Covered Steel Flexible Conduit, Medium Flexibility, Nominal Conduit Size 20mm, Outside Diameter 21.1mm, Inside Diameter 15.9mm, Static Bend Radius 80mm, Reel Length 50 Meters, Thermoplastic Rubber Cover with Galvanised Steel Core, Black

Features

Very high UV resistance
Very High flexibility
High fatigue life
High mechanical strength
Self extinguishing and halogen free
Machine Building
Extreme Temperature Environments

Specifications

Packaging

Outer Quantity	1
Weight Uom	42.44 lbs. Each

Outer Dimensions (inches)	1x1x1

European Specifications (ETIM)

ETIM	EC001179 Protective metallic hose
Outer diameter	21.1mm
Material	Steel
Sheathing material 1st coating	Other
Degree of protection (IP)	IP68
Colour	Black

Nominal diameter	20mm
Inner diameter	15.9mm
Surface protection	Other
Operating temperature	-65-+135°C
Weight	0.4kg/m
Bending strength	Flexible

North American Specifications (UNSPSC)

UNSPSC	39131706 Electrical conduit
Brand Name	Adaptaflex
Application	Liquid Tight - Extreme Temperature Environments
Outside Diameter	21.1mm
Length	50 m
Flexibility	Medium
Color	Black

IGCC	5543 Liquid Tight Conduit
Type	Extreme Temperature Flexible Conduit
Trade Size	1/2 Inch/NC 20mm
Inside Diameter	15.9mm
Radius	80mm
Material	Galvanized Steel Core with Thermoplastic Rubber Cover
