Adaptaflex SPLHCB16/25M Liquid Tight Extreme Temperature Flexible Conduit 16mm, 25 Meter Length
- MPN: SPLHCB16/25M
- UPC: 786210245492
- PPN: T-B-SPLHCB16/25M
CAD
$2798.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

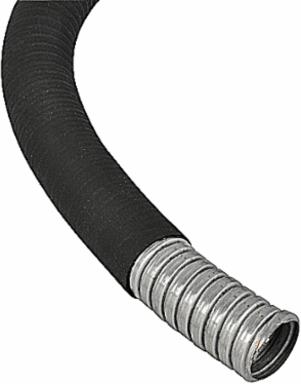

Liquid Tight, Extreme Temperature Covered Steel Flexible Conduit with Stainless Steel Overbraid, Medium Flexibility, Nominal Conduit Size 16mm, Outside Diameter 17.8mm, Inside Diameter 12.5mm, Static Bend Radius 50mm, Reel Length 25 Meters, Thermoplastic Rubber Cover with Galvanised Steel Core, Black
Features
- Very high UV resistance
- Very high flexibility
- Very high fatigue life
- High mechanical strength, high abrasion resistance
- Self extinguishing and halogen free
- Standard EMI screen rate
- Rail/Infrastructure
- Underground
- Public Buildings
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Adaptaflex
- Application
- Liquid Tight - Extreme Temperature Environments
- Outside Diameter
- 17.8mm
- Length
- 25 m
- Flexibility
- Medium
- Color
- Black
IGCC5543 Liquid Tight Conduit
TypeExtreme Temperature Flexible Conduit
Trade Size3/8 Inch/NC 16mm
Inside Diameter12.5mm
Radius50mm
MaterialGalvanized Steel Core with Thermoplastic Rubber Cover
European Specifications (ETIM)
- ETIM
- EC001179 Protective metallic hose
- Outer diameter
- 17.8mm
- Material
- Steel
- Sheathing material 1st coating
- Other
- Operating temperature
- -65-+135°C
- Weight
- 0.294kg/m
- Bending strength
- Flexible
Nominal diameter16mm
Inner diameter12.5mm
Surface protectionOther
Sheathing material 2nd coating (exterior)Stainless steel wire
Degree of protection (IP)IP68
ColourBlack
Packaging
- Outer Quantity
- 1
- Weight Uom
- 16.2 lbs. Each
Outer Dimensions (inches)1x1x1
