Fluke I30 Fluke i30 AC/DC Current Clamp
- MPN: I30
- UPC: 095969345095
- PPN: FLU-I30
CAD
$951.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

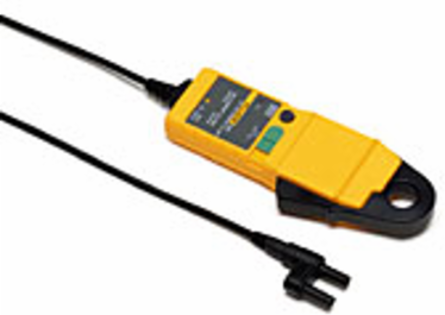

Fluke i30 AC/DC Current Clamp
Specifications
General Specifications
- Weight
- 250 g
- Storage temperature range (with battery removed)
- -20°C to +85°C
- Output zero
- Manual adjust via thumbwheel
- Safety standards
- BS EN 61010-1:2001
- Safety standards
- BS EN 61010-2-032:2002
- Safety standards
- BS EN 61010-031:2002
- Safety standards
- 300 V rms, Category III, Pollution Degree 2
Operating temperature range0°C to +50°C
Output connection4 mm safety connector
Safety standardsUse of the probe on uninsulated conductors is limited to 300 V AC rms or DC and frequencies below 1 kHz
Cable length1.5 meters
Operating humidity15% to 85% (non-condensing)
EMC StandardsEN 61326: 1998 +A1, A2, and A3
Maximum conductor size19 mm diameter
Electrical Specifications
- Frequency range
- DC to 20 kHz (-0.5 dB)
- Usable current range
- 5 mA to 30 A DC, 30 mA to 20 A AC rms
- Crest Factor
- 1.4 in
- Accuracy (at +25°C)
- ±1% of reading ±2 mA
- Resolution
- ±1 mA
- Output sensitivity
- 100 mV/A
Specified current range30 mA to 30 A DC, 30 mA to 20 A AC rms
Load impedance> 10 k Ohms and ≤ 100pF
Working voltage (see Safety Standards section)300 V AC rms or DC
Temperature coefficient±0.01% of reading/°C
Power supply9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator
Conductor position sensitivity±1% relative to center reading
