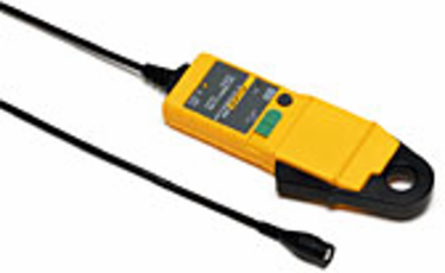

Fluke I30S Fluke i30s AC/DC Current Clamp
- MPN: I30S
- UPC: 095969345101
- PPN: FLU-I30S
CAD
$1128.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fluke i30s AC/DC Current Clamp is used in conjunction with oscilloscopes for accurate non-intrusive current measurement. Contact us for more information.
Specifications
Electrical specifications
- Usable current range
- 5 mA to 30 A DC, 30 mA to 20 A AC rms
- Conductor position sensitivity
- ±1% relative to center reading
- Working voltage (see Safety Standards section)
- 300 V AC rms or DC
- Specified current range
- 30 mA to 30 A DC, 30 mA to 20 A AC rms
- Frequency range
- DC to 100 kHz (-0.5 dB)
- Accuracy (at +25°C)
- ±1% of reading ±2 mA
- Crest factor
- 1.4 in
Output sensitivity100 mV/A
Resolution±1 mA
Temperature coefficient±0.01% of reading / °C
Power supply9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator
Load impedance> 100 kΩ
Phase shift below 1 kHz< 2°
General Specifications
- Operating humidity
- 15% to 85% (non-condensing)
- EMC standards
- EN 61326: 1998 +A1, A2, and A3
- Maximum conductor size
- 19 mm diameter
- Operating temperature range
- 0°C to +50°C
- Safety standards
- BS EN 61010-1: 2001
- Output connection
- Safety BNC connector, supplied with safety 4 mm adapter
- Storage temperature range (with battery removed)
- -20°C to +85°C
Cable length2 m
Safety standardsBS EN 61010-2-032: 2002
Output zeroManual adjust via thumbwheel
Safety standardsBS EN 61010-031: 2002
Safety standardsUse of the probe on uninsulated conductors is limited to 300 V AC rms or DC and frequencies below 1 kHz
Weight250 g
Safety standards300 Vrms, Category III, Pollution Degree 2
