Leviton

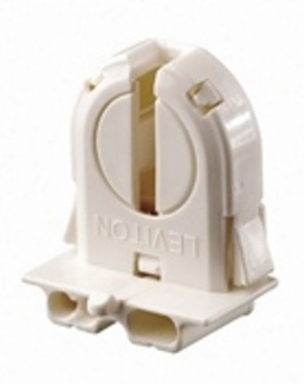

Leviton 23652-WP Fluorescent lampholder, med bi-pin, turn type, dedicated T8, snap-in mounting, 660w-600v. UL and CSA. With internal shunt. Pkd 2000/ Leviton carton bulk

Fluorescent lampholder, med bi-pin, turn type, dedicated T8, snap-in mounting, 660w-600v. UL and CSA. With internal shunt. Pkd 2000/ Leviton carton bulk
  • MPN: 23652-WP
  • UPC: 078477110881
  • PPN: LEV-23652-WP

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3.23/ EA

Description

Fluorescent lampholder, med bi-pin, turn type, dedicated T8, snap-in mounting, 660w-600v. UL and CSA. With internal shunt. Pkd 2000/ Leviton carton bulk

Specifications

Mechanical Specifications

Contact Type
Lamp-Lock
Panel Thickness
22-25 Ga. Panel
Termination
Quickwire 18AWG Solid
Wire Strip Length
3/8 Inch
Mounting TypeSnap-In or Slide-ON
Rated Wattage660W
Voltage600 Volt

Product Features

Availability
Distribution
Color
White
Feature
Internal Shunt
Lamp Contacts
Bi-Pin
Lampholder Type
Linear
Notes
With Panel Locator Post
Standards and Certifications
UL/CSA/NOM
Warranty
1 Year Limited
Body MaterialThermoplastic
Contact MaterialCopper-Alloy
Lamp BaseMedium
Lamp TypeT8 Only
Light TypeFluorescent
ScrewPanel Locator Post
Style NameExtra-Low Profile

Standards and Certifications

CSA Certified
File LR-1863
UL Listed
File E5833
NOM Certified057
VDECertified to IEC

Specifications

Country of Origin
Mexico
RoHS CompliantFalse
