Leviton

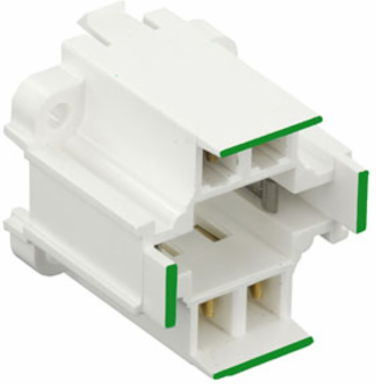

Leviton 26725-402 G24q-2, GX24q-2 Base, 18W 4-Pin, 10mm Compact Fluorescent Lampholder, Vertical, Bottom Snap-In, Green Color Code, , Quick-Connect 18AWG Solid or Str. Tinned - White Body

G24q-2, GX24q-2 Base, 18W 4-Pin, 10mm Compact Fluorescent Lampholder, Vertical, Bottom Snap-In, Green Color Code, , Quick-Connect 18AWG Solid or Str. Tinned - White Body
  • MPN: 26725-402
  • UPC: 078477850329
  • PPN: LEV-26725-402

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$8.14/ EA

Description

G24q-2, GX24q-2 Base, 18W 4-Pin, 10mm Compact Fluorescent Lampholder, Vertical, Bottom Snap-In, Green Color Code, , Quick-Connect 18AWG Solid or Str. Tinned - White Body

Specifications

Product Features

Warranty
1 Year Limited
Light Type
Fluorescent
Color
White
Standards and Certifications
UL/CSA/NOM
Lamp Wattage
18 W
Panel Thickness
16 Ga. Panel
Wire Strip Length
3/8 Inch
Lamp Contacts
4-Pin
Wiring Ports
2
Rated Wattage
75W
Mounting OrientationVertical
Color CodeGreen
Mounting TypeBottom Snap-In
Country Of OriginMexico
Lamp BaseG24q-2, GX24q-2
Style NameStandard Body
TerminationQuick-Connect 18AWG Solid or Str. Tinned
Body StyleStandard Body
AvailabilityDistribution
Lampholder TypeCompact

Electrical Specifications

Voltage
600 Volt
Lamp Wattage
18 W
Rated Wattage75W

Standards and Certifications

CSA Certified
File LR-1863
UL Rated
Indoor/Outdoor when properly enclosed.
UL ListedFile E5833
NOM057

Mechanical Specifications

Mounting Orientation
Vertical
Body Material
Thermoplastic
Termination
Quick-Connect 18AWG Solid or Str. Tinned
Availability
Distribution
Mounting TypeBottom Snap-In
Panel Thickness16 Ga. Panel
Retainer ClipStainless Steel
Contact MaterialCopper-Alloy

Downloads
