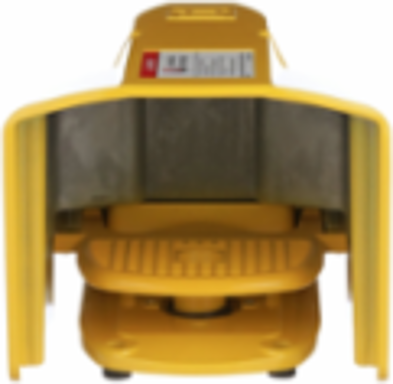

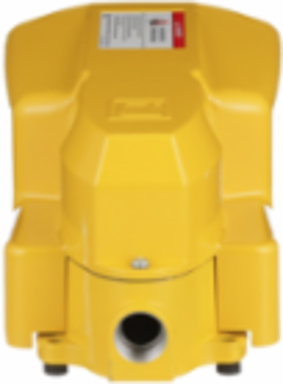

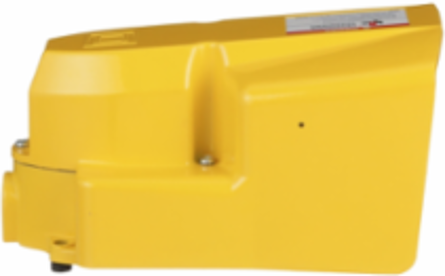

Square D 9002AW132 Harmony Industrial Foot Switch, NEMA 2/4/13, 600V AC, SPDT, Oversized Pedal

MPN: 9002AW132
UPC: 785901045267
PPN: SCH-9002AW132
UNSPSC: 39122222

$824.25

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

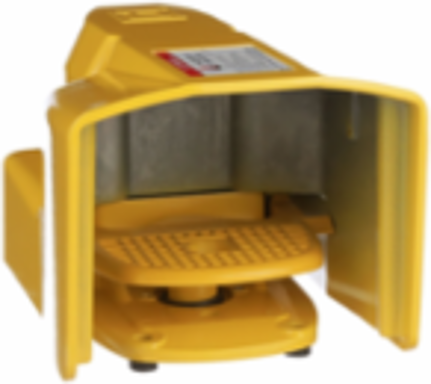

9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has oversized pedal and side shields. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is 6.26 inches tall, 6.40 inches wide and 8.56 inches deep. Foot switch is UL listed and CSA certified.

Features

This industrial switch is part of the 9002 Heavy Duty Foot Switch product range
It has single pole double throw operation with a spring return with mechanical latch
An oversized pedal shield, side shields, and heavy duty cast metal provide a robust design
It complies with UL and CSA standards and is NEMA 2, 4, and 13 rated
Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	217 mm

Weight	4700 g

Complementary Attributes

Ue Rated Operational Voltage	600 V AC/DC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	oversized pedal shield, side shield
Carbon Footprint Of The Distribution Phase A4	0.6146089336, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.7501885446, 0.8 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-09-04
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Operation	1 step
Product Or Component Type	foot switch
Returnability	Yes
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	35 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	163 mm
Customs Code	8536509040
Functional Unit Description	XPE metal, single foot switch is an ideal solution for providing start and stop instructions for many types of industrial machines, running in various operating modes like normal (pulsed) start, inching, hold to run. It is designed such that the operating pedal is close to the ground and at a comfortable angle. It is delivered without a protective cover, this makes it suitable for applications where the issuing of the start instruction presents a reduced level of danger.
Functional Unit Unit	Unit
Recyclability Potential In %	13

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	UL Listed, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	2 kg CO2 eq., 1.9676654969
Carbon Footprint Of The Manufacturing Phase A1 To A3	32 kg CO2 eq., 31.5579016237
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Cable Entry	0.75 inch NPT conduit entrance
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	9002AW
Software Version	v5.9.4
Switch Function	SPDT
Type Of Operator	spring return
Database Version	2022-01
Height Nominal	159 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	34.8903645988
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-12-07
Psr Version	PSR-0005-ed2-2016 03 29

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2506039EN
Nema Degree Of Protection	NEMA 4/13
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2506039EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
