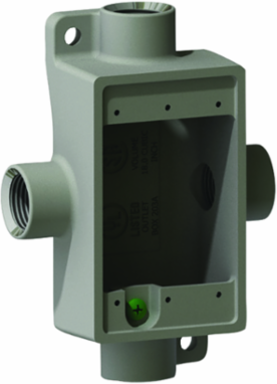

Killark FSX-2 Aluminum Device Box 3/4 Inch Hub, 18 Cu In, Wet Location Compatible
- MPN: FSX-2
- UPC: 783936190723
- PPN: HBL-FSX-2
- UNSPSC: 39121308
CAD
$121.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
FSX Series Fittings - Aluminum - FSX Type Cast Device Box - Shallow -Hub Size 3/4 In - Volume 18.0 Cu In
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Height | 7.062 in |
| Length | 10.12 in |
| Color | Gray |
| Size | 10.12 in x 4.68 in x 7.062 in |
| Type | Device Box |
| Engineering Drawing 1 Display Text | FSX-2 Engineering Drawing |
| Number Of Outlets | 1 |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| CSA File Number | LR11852 |
| Hub Pattern | FSX |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 3.280 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 4 EA |
| NAICS Code | 3359326103 |
| Dimensions | 10.12 in x 4.68 in x 7.062 in |
|---|---|
| Hub Size | 3/4" |
| Application | Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes. |
| Number of Outlet | 1 |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42). |
| Width | 4.68 in |
| Finish Type | Powder Epoxy Paint |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | FSX 3/4" AL SHALL DEV BOX |
| Harmonization Code | 7616995190 |
| Lead Time | 42 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D233 |
| Gross Weight with Packaging | 0.82 |
| UL File Number | E3397 |
| Series | F Series |
| BOX SIZE | 7.000x9.750x6.500 (in) |
| Carton - Number of Sub Packs | 4 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936190723 |
| Master Pack Description | Each |
