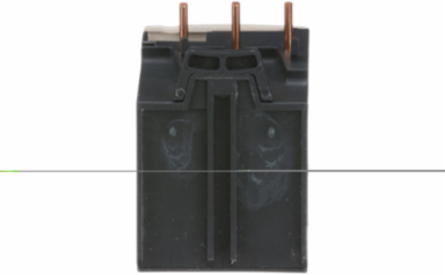

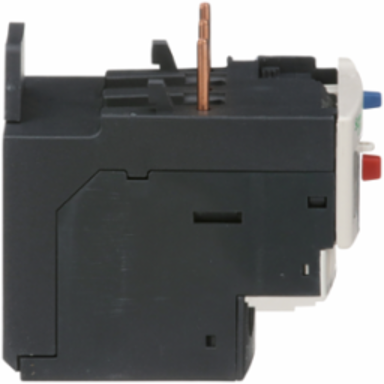

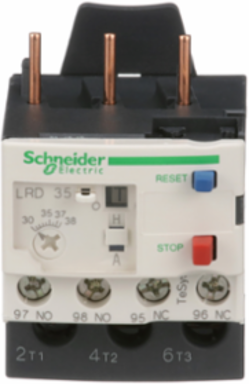

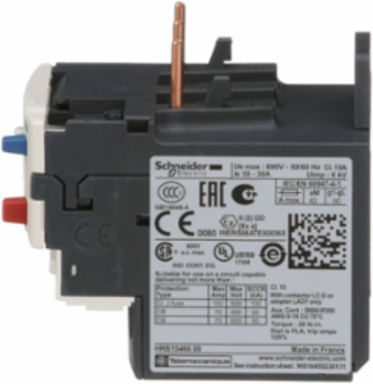

Schneider Electric LRD35 TeSys Deca Thermal Overload Relay 690V, 30-38A, 1NO+1NC, Class 10A
- MPN: LRD35
- PPN: SCH-LRD35
CAD
$181.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys LRD thermal overload relay, 38A/690V, thermal setting range 30-38A, tripping class 10A, for protection of 3-phase motors 18.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D32-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Features
- Engineered for high-precision 3-phase motor protection, this thermal overload relay allows you to strictly dial in the exact full-load amperage of your equipment between 30 and 38 amps. Setting the correct operational threshold prevents expensive stator winding damage from sustained overcurrents, dramatically extending the operational lifespan of your industrial pumps, compressors, and heavy material conveyors.
- Built to tolerate standard, harmless inrush currents during motor boot-up, the Class 10A rating safely absorbs short-duration surges while reliably reacting to prolonged overloads. This intelligent thermal profile eliminates frustrating unplanned downtime in busy automation control panels, ensuring your heavy-duty machinery starts smoothly while remaining strictly protected against electrical faults.
- Continuously monitoring electrical current across all three poles, this advanced safety device instantly detects dangerous phase drops or severe voltage unbalances that standard circuit breakers often miss. By rapidly opening the motor starter circuit before critical overheating and insulation breakdown can occur, it proactively safeguards your valuable industrial hardware and drastically reduces emergency facility maintenance budgets.
- Designed for seamless mechanical integration into high-density electrical enclosures, this TeSys Deca relay mounts directly underneath standard Schneider LC1D32 and LC1D38 contactors using secure, vibration-resistant screw-clamp terminals. This highly efficient, OEM-compliant footprint speeds up both new motor panel building and routine retrofitting, while providing built-in 1NO/1NC auxiliary contacts for instant fault signaling directly to your PLC.
Documentation & Downloads
Specifications
Additional
- Thermal Protection Adjustment Range
- 30-38 A
- Amperage
- 30-38 A
- Impulse Withstand Voltage
- 6 kV
- Conventional Free Air Thermal Current
- 5 A signalling circuit
- Control Type
- Red push-button stop, Blue push-button reset
- Connection Terminals
- Screw clamp terminals; control circuit 1–2.5 mm², power circuit 1–10 mm²
- Dimensions (H x W x D)
- 66 mm x 45 mm x 70 mm (2.60 in x 1.77 in x 2.76 in)
- Mounting Support
- Plate, rail, under contactor with specific accessories
- Standards
- EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495
- Flame Retardance
- V1 UL 94
- Ambient Air Temperature For Operation
- -20 to 60 °C without derating IEC 60947-4-1
- Dielectric Strength
- 1.89 kV 50 Hz IEC 60947-1
- Mercury Free
- Yes
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- Warranty
- 18 months
- Relay Application
- Motor protection
- Product Compatibility
- LC1D32, LC1D38
- Sustainable Offer Status
- Green Premium product
- Weee
- Must follow EU waste collection, no rubbish bin disposal
Thermal Overload ClassClass 10A IEC 60947-4-1
Rated Operational Voltage690 V AC 0...400 Hz power circuit IEC 60947-4-1
Tripping Threshold1.14 ± 0.06 Ir IEC 60947-4-1
Permissible Current1.5 A 240 V AC-15, 0.1 A 250 V DC-13 signalling circuit
Network TypeAC, DC
Tightening Torque1.7 N.m control circuit, 2.5 N.m power circuit screw clamp terminals
Net Weight0.124 kg (0.27 lb)
Ingress ProtectionIP20 IEC 60529
CertificationsIEC, UL, CSA, CCC, EAC, ATEX, BV, RINA, DNV-GL, LRS, Marine, UKCA
Phase Failure SensitivityTripping current 130% of Ir on two phases, last one at 0
Ambient Air Temperature For Storage-60 to 70 °C
Network Frequency0...400 Hz
China RoHS RegulationOut of China RoHS scope; substance declaration available
RoHS Exemption InformationYes
Device Short NameLRD
RangeTeSys, TeSys Deca
Circularity ProfileENVEOLI0802006
Environmental DisclosureENVPEP080206EN
