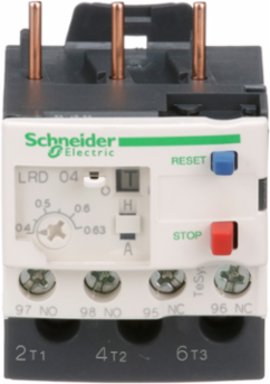

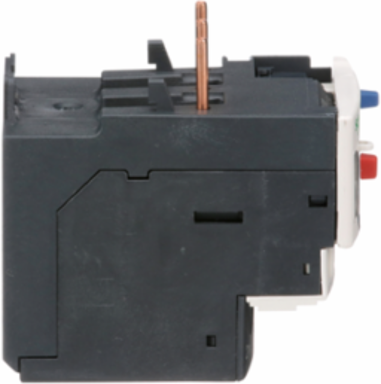

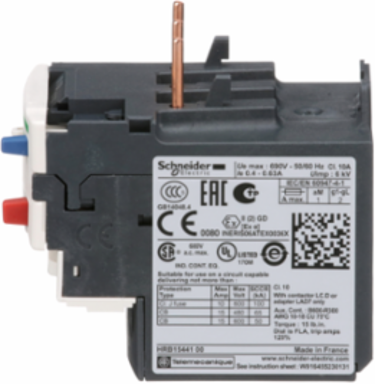

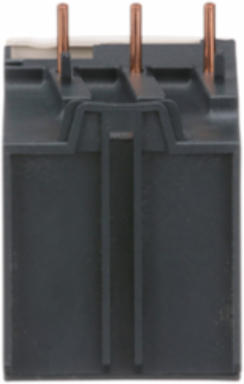

Schneider Electric LRD04 TeSys Deca Thermal Overload Relay 0.4-0.63A 690V Class 10A
- MPN: LRD04
- PPN: SCH-LRD04
CAD
$124.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 0.4 to 0.63 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
Features
- Designed with integrated differential tripping, this bimetallic thermal overload relay offers precision protection against single-phasing and phase unbalance. By automatically cutting power when it detects a loss of phase, it prevents the excessive heat buildup that leads to catastrophic motor winding failure, saving you thousands in emergency replacement costs and unscheduled industrial downtime.
- Featuring a calibrated adjustment dial, this relay allows for fine-tuned setting between 0.4 and 0.63 Amps to match your motor s specific nameplate data. This high-resolution control ensures the relay isn't too sensitive to start-up spikes while remaining responsive enough to trigger a trip the moment a genuine overload occurs, providing a custom-tailored safety net for low-horsepower machinery.
- Engineered for seamless mechanical and electrical connection, the LRD04 plugs directly into the bottom of LC1D09 through LC1D38 contactors. This "plug-and-play" integration eliminates the need for additional mounting brackets or complex wiring, significantly reducing panel assembly time and ensuring a compact, vibration-resistant footprint within your control enclosure.
- Equipped with a blue "Reset" button and a red "Stop" button, this unit provides flexible control for your maintenance workflow. You can toggle between manual reset for supervised safety or automatic reset for remote applications, while the built-in test trip simulation allows you to verify the internal mechanism and control wiring without needing an actual fault, ensuring your safety systems are always "mission-ready."
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Thailand, United States
Depth70 mm
Important Information Attributes
- Associated Fuse Rating
- 4 A gG for signalling circuit, 4 A BS for signalling circuit
- Mounting Support
- plate, with specific accessories, rail, with specific accessories, under contactor
- Permissible Current
- 3 A 120 V AC-15 signalling circuit, 0.22 A 125 V DC-13 signalling circuit
- Range
- TeSys, TeSys Deca
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminals, power circuit 1.7 N.m screw clamp terminals
- [Ui] Rated Insulation Voltage
- power circuit 600 V CSA, power circuit 600 V ULpower circuit 690 V IEC 60947-4-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.024163479198025903, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.01635889814277638, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 12 kg CO2 eq., 11.633004615445152
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - Protection relay
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Control Type
- Red push-button stopBlue push-button reset
- Dielectric Strength
- 1.89 kV 50 Hz IEC 60947-1
- Network Frequency
- 0...400 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Relay Application
- motor protection
- Software Version
- v6.1
- Thermal Overload Class
- class 10A IEC 60947-4-1
- Total Lifecycle Carbon Footprint
- 13 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP0802006EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Europe, EU-27
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In %
- 50
- Width Nominal
- 45 mm
- [Ue] Rated Operational Voltage
- 690 V AC 0...400 Hz power circuit IEC 60947-4-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490075
Mechanical Robustnessvibrations6 Gn IEC 60068-2-6, shocks15 Gn for 11 ms IEC 60068-2-7
Network TypeAC, DC
Product NameTeSys LRD, TeSys Deca
Temperature Compensation-20-60 °C, -20-60 °C
Certificate AgencyIEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA
Connections - Terminalspower circuit screw clamp terminals 1 1-4 mm² flexible with cable endpower circuit screw clamp terminals 1 1-6 mm² solid without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end, power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.21678519324421383
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.0267614686619415
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI0802006
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date0627
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Compatibility CodeLRD
Device Short NameLRD
Flame RetardanceV1 conforming to UL 94
Phase Failure Sensitivitytripping current 130 % of Ir on two phase, the last one at 0
Product Or Component Typedifferential thermal overload relay
ReturnabilityYes
Sustainable PackagingNo
Thermal Protection Adjustment Range0.4-0.63 A
Tripping Threshold1.14 +/- 0.06 Ir IEC 60947-4-1
R Thermal Protection Adj Range0.4-0.63 A
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh28.3824
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal66 mm
[Ith] Conventional Free Air Thermal Current5 A signalling circuit
[Uimp] Rated Impulse Withstand Voltage6 kV
Package Weight(Lbs)139.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-70 °C, -60-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI0802006
- Environmental Disclosure
- ENVPEP0802006EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Ambient Air Temperature For Operation-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Product CompatibilityLC1D25, LC1D38, LC1D32, LC1D18, LC1D12, LC1D09
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint12.917073654692109
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP0802006EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- differential thermal overload relay
ETIM
- ETIM 8
- EC000106
ETIM 9EC000106
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
