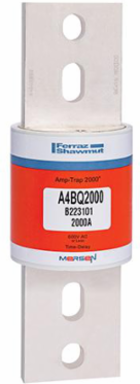

Mersen A4BQ2000 600V 2000A Time-Delay Class L Fuse, 200 kA Interrupting Rating

600V 2000A Time-Delay Class L Fuse, 200 kA Interrupting Rating
  • MPN: A4BQ2000
  • UPC: 782001939410
  • PPN: FER-A4BQ2000

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1524.25/ EA

Description

Amp-Trap 2000 A4BQ fuses are 20 percent more current limiting than any other Class L fuse on the market. When correctly coordinated, they bring a superior level of protection to service entrance equipment. Downstream circuit components have maximum protection against short circuit let-thru current. A4BQ's built-in 4-second time-delay characteristic (at 500percent of rated current) accommodates harmless inrush currents with no nuisance opening.

Specifications

Specifications

Rated voltage AC UL
600 V
Frequency (Hz)
50/60 Hz
ROHS Compliant
Yes
Fuse Class
Class L
Mounting
Bolted
Connection/Terminal Material
Silver-Plated Copper
Body/Insulating Material
GMG
Weight
8.34 lb
Rated voltage DC UL500 V
Ampere Rating2000 A
AC or DCAC/DC
Speed/CharacteristicTime Delay
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeBlade
Length10.75 in
