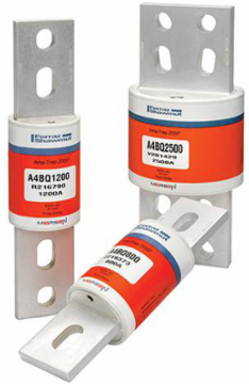

Mersen A4BQ3000-TA Fuse Amp-Trap 2000® 600V 3000A Time-Delay Class L with TA Indicator
- MPN: A4BQ3000-TA
- UPC: 782001294137
- PPN: FER-A4BQ3000-TA
CAD
$3864.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Amp-Trap 2000 A4BQ fuses are 20 percent more current limiting than any other Class L fuse on the market. When correctly coordinated, they bring a superior level of protection to service entrance equipment. Downstream circuit components have maximum protection against short circuit let-thru current. A4BQ's built-in 4-second time-delay characteristic (at 500percent of rated current) accommodates harmless inrush currents with no nuisance opening.
Specifications
Key Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Class L
- Mounting
- Bolted
- Indication System
- Yes
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- GMG
- Weight
- 17.95 lb
Rated voltage DC UL500 V
Ampere Rating3000 A
AC or DCAC/DC
Speed/CharacteristicTime Delay
AC Max I.R./Breaking Capacity: I1200 kA
Indication System TypeTA Indicator
Connection/Terminal TypeBlade
Length10.75 in
