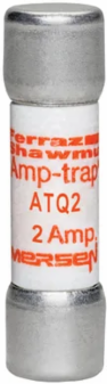

Mersen ATQ2 Fuse Amp-Trap® Midget 2A Time Delay, 500V, 1.5 Inch Length, Clip Mounting
- MPN: ATQ2
- UPC: 782001903541
- PPN: FER-ATQ2
CAD
$11.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap ATQ midget time-delay fuses are rated 500VAC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection)
Features
- Engineered with an advanced dual-element design, the Mersen ATQ2 features an intentional 12-second time-delay at 200% overcurrent rating. This specialized characteristic safely absorbs harmless inductive inrush currents from lighting balasts, small motors, and transformers, preventing nuisance blowing and eliminating costly, unnecessary downtime.
- The Amp-Trap ATQ2 is fully rated for low-voltage applications up to 500 VAC with a 10 kA interrupting rating (IR). This robust electrical performance delivers secure, predictable supplemental overcurrent protection in demanding commercial and industrial distribution environments.
- Built to standard Class Midget specifications, this cylindrical cartridge fuse measures exactly 13/32 inches in diameter by 1-1/2 inches in length (38.1 mm x 10.3 mm). It features durable tin-plated copper ferrule terminals that guarantee low-resistance clip mounting and seamless physical compatibility with UltraSafe USM series fuse holders.
- No, the ATQ2 series is specifically certified for supplemental protection rather than main branch circuit isolation. It provides targeted, localized defense for internal components like control transformers, solenoids, and circuit boards, isolating specific electrical faults without tripping the upstream main breaker.
- This high-performance midget fuse is UL Listed to Standard 248-14 (File E33925) and CSA Certified to Standard C22.2 No. 248.14. These safety certifications ensure your control loops and machinery remain fully compliant with national and local electrical safety codes.
Documentation & Downloads
Specifications
Additional
- Amperage
- 2 A
- Short Circuit Current Rating
- 10 kA
- Speed/Characteristic
- Time Delay
- Weight
- 0.014 lb
- Connection/Terminal Material
- Tin-Plated Copper
- Mounting
- Clip
- AC or DC
- AC
Voltage500 V
Fuse ClassMidget
Length1.5 in
Body/Insulating MaterialGMG
Connection/Terminal TypeFerrule
Frequency50/60 Hz
