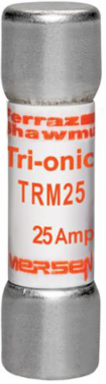

Mersen TRM25 Tri-Onic® Time-Delay Midget Fuse 250V 25A 1-1/2 Inch x 13/32 Inch
- MPN: TRM25
- UPC: 782001746643
- PPN: FER-TRM25
CAD
$5.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
Specifications
Key Specifications
- Rated voltage AC UL
- 250 V
- Ampere Rating
- 25 A
- AC or DC
- AC
- Speed/Characteristic
- Time Delay
- AC Max I.R./Breaking Capacity: I1
- 10 kA
- Connection/Terminal Type
- Ferrule
- Length
- 1.5 in
Frequency (Hz)50/60 Hz
ROHS CompliantYes
Fuse ClassMidget
MountingClip
Connection/Terminal MaterialTin-Plated Copper
Body/Insulating MaterialGMG
Weight0.013 lb
