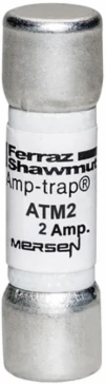

Mersen ATM2 Fuse Amp-Trap® 600V 2A Fast-Acting Midget Fuse, 1-1/2 Inch x 13/32 Inch, Grit 100 kA
- MPN: ATM2
- UPC: 782001900786
- PPN: FER-ATM2
CAD
$8.90
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap® midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).
Features
- This 2-amp, fast-acting fuse responds within seconds to overcurrent events, preventing costly downstream damage to small motors, transformers, and delicate electronic components. By deploying this nimble interruption capability, you can safeguard your equipment against sudden spikes before heat can build up and compromise your system.
- Engineered with dual 600VAC and 600VDC ratings, the Amp-Trap ATM series delivers flexible electrical protection across standard plant utility lines as well as modern photovoltaic and solar energy installations.
- Boasting a robust 100kA interrupting rating, this cartridge fuse is designed to isolate severe electrical faults under high short-circuit current conditions. This immense breaking capacity stops extreme arc flashes and energy surges dead in their tracks, maintaining panel integrity and protecting your technical staff from dangerous equipment failures.
- Formatted to the universal 1-1/2" x 13/32 (10mm x 38mm) cylindrical body standard, this Class Midget fuse ensures drop-in physical compatibility with existing clip mounts and open-style blocks. It pairs seamlessly with modern finger-safe modules like the Mersen UltraSafe series, ensuring a tight, secure connection that eliminates resistance-induced power drops.
- This supplemental protection fuse is fully UL Listed to Standard 248-14 and certified to CSA C22.2 No. 248.14, ensuring compliance with strict regional electrical codes and engineering criteria. The RoHS-compliant construction guarantees that your control panels meet standard environmental safety regulations during facility performance reviews.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC/DC
- Interrupting Rating
- 100 kA
- Length
- 1.5 in
- Mounting
- Clip
- Connection/Terminal Material
- Tin-Plated Copper
- Weight
- 0.017 lb
Amperage2 A
Fuse TypeFast-Acting Midget
Connection/Terminal TypeFerrule
Body/Insulating MaterialGMG
ROHS CompliantYes
