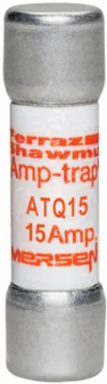

Mersen ATQ15 Fuse 500V 15A Time-Delay Midget, 1-1/2 Inch x 13/32 Inch, 10 kA Breaking Capacity
- MPN: ATQ15
- UPC: 782001904609
- PPN: FER-ATQ15
CAD
$11.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap ATQ midget time-delay fuses are rated 500VAC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection)
Features
- The Mersen Amp-Trap® ATQ15 features an engineered 12-second time delay at 200% overcurrent rating, specifically designed to withstand harmless temporary inrush currents. This intentional delay eliminates nuisance tripping when high-inductive loads like small motors, control transformers, lighting ballasts, and solenoids kick on, keeping your operations moving smoothly without unnecessary downtime.
- This midget fuse is strictly rated for supplementary circuit protection and is not intended for main branch circuit isolation. It delivers dedicated secondary protection for sensitive, high-value components down the line, safeguarding your local control loops and downstream industrial equipment while leaving your primary panel breakers to handle the main distribution load.
- Built to the universal midget fuse form factor, this unit features a standard 13/32-inch diameter by 1-1/2-inch length (10.3 mm x 38.1 mm) body size with heavy-duty ferrule terminals. It provides seamless physical compatibility across a massive footprint of standard open-style fuse blocks, clip mounts, and fully enclosed safety modules like Mersen UltraSafe™ USM fuse holders.
- Fully rated for low-voltage applications up to 500VAC, this cartridge fuse handles demanding machinery control networks with ease. It features a robust 10kA interrupting rating (I.R.) at 500V, ensuring clean electrical fault suppression and preventing catastrophic energy discharge in circuits where the available short-circuit current remains under 10,000 amps.
Documentation & Downloads
Specifications
Additional
- Voltage
- 500 V AC
- Breaking Capacity
- 10 kA
- Mounting
- Clip
- Connection Material
- Tin-Plated Copper
- Frequency
- 50/60 Hz
- Speed/Characteristic
- Time Delay
Amperage15 A
Length1.5 in
Connection TypeFerrule
MaterialGMG
Fuse ClassMidget
RoHS ComplianceYes
