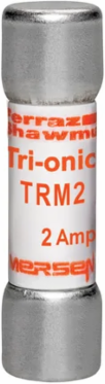

Mersen TRM2 Tri-Onic® Midget Fuse 250V 2A Time-Delay, 1-1/2 Inch x 13/32 Inch
- MPN: TRM2
- UPC: 782001743291
- PPN: FER-TRM2
CAD
$5.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
Features
- Engineered with a built-in 12-second time-delay at 200% rating, this Tri-Onic supplemental fuse absorbs harmless, temporary power surges without nuisance tripping. This specialized time-lag performance prevents unnecessary system downtime when starting up small motors, lighting circuits, or inductive transformers.
- This standard Midget-class cartridge fuse features a standard 10mm x 38mm (13/32-inch by 1-1/2-inch) cylindrical physical profile with high-conductivity ferrule terminals. It drops cleanly into standard clip-mount fuse blocks, open-style modules, or Mersen UltraSafe USM series finger-safe fuse holders.
- This low-voltage supplemental fuse is fully rated for 2 A at 250 VAC and delivers a solid 10 kA short-circuit interrupting rating (I.R.). It handles up to 250-volt control circuits and supplemental power loops, making it an ideal drop-in cross-reference replacement for older Ferraz Shawmut, Bussmann FNM-2, or Littelfuse FLM-2 models.
Documentation & Downloads
Specifications
Additional
- Voltage
- 250 V AC
- Interrupting Rating
- 10 kA
- Length
- 1.5 in
- Weight
- 0.013 lb
- Mounting
- Clip
- Connection/Terminal Material
- Tin-Plated Copper
- Frequency
- 50/60 Hz
- RoHS Compliant
- Yes
Amperage2 A
Speed/CharacteristicTime Delay
Dimensions1.5 in x 0.41 in
Fuse ClassMidget
Connection/Terminal TypeFerrule
Body/Insulating MaterialGMG
AC or DCAC
