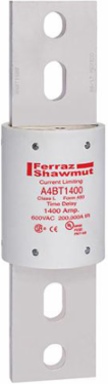

Mersen A4BT1400 Fuse Amp-Trap 600V 1400A Class L Time-Delay Fuse, 10.75 Inch Length, 6.6 lb Weight
Mersen A4BT1400 Fuse Amp-Trap 600V 1400A Class L Time-Delay Fuse, 10.75 Inch Length, 6.6 lb Weight
- MPN: A4BT1400
- UPC: 782001939946
- PPN: FER-A4BT1400
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$593.87/ EA
Description
The high interrupting rating of the Amp-Trap A4BT current-limiting fuses makes it suitable for protecting mains, feeders, and general circuits. The 10-second time-delay at 500 percent of fuse rating is ideal for large motors and other loads with high inrush currents. A4BT fuses can be applied to normal loads up to its full ampere rating to allow 100percent rating of equipment.
Specifications
Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Class L
- Mounting
- Bolted
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- GMG
- Weight
- 5.92 lb
Rated voltage DC UL500 V
Ampere Rating1400 A
AC or DCAC/DC
Speed/CharacteristicTime Delay
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeBlade
Length10.75 in
