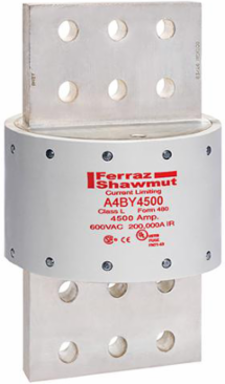

Mersen A4BY4500 Fuse Amp-Trap Class L 600V 4500A Time-Delay, 10.75 Inch Length, 31.5 lb
Mersen A4BY4500 Fuse Amp-Trap Class L 600V 4500A Time-Delay, 10.75 Inch Length, 31.5 lb
- MPN: A4BY4500
- UPC: 782001939366
- PPN: FER-A4BY4500
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3160.66/ EA
Description
Amp-Trap A4BY fuses have been the industry's favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100percent rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500percent rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.
Specifications
Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Class L
- Mounting
- Bolted
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- GMG
- Weight
- 28.29 lb
Rated voltage DC UL300 V
Ampere Rating4500 A
AC or DCAC/DC
Speed/CharacteristicTime Delay
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeBlade
Length10.75 in
