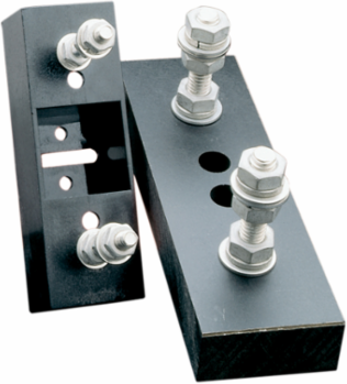

Mersen P266C Fuse Base 1000V 1-Pole 600A with Tin-Plated Copper Stud and Bolt-in Installation
- MPN: P266C
- UPC: 782001974251
- PPN: FER-P266C
CAD
$236.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen P-Block series for Form 101 fuses are glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. All studs, clips and mounting hardware are tin or zinc-plated
Specifications
Key Specifications
- Rated voltage AC UL
- 1000 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Short Circuit Current Rating (SCCR)
- 10 kA
- Number of Poles
- 1-Pole
- Connection/Terminal Type
- Stud
- Torque Rating
- 144 lb-in
- Installation Mounting
- Direct Screw Mount
- Width
- 3 in
- Height
- 3 in
Rated voltage DC UL1000 V
Ampere Rating600 A
AC or DCAC/DC
Fuse Type/ClassSemiconductor
Connection/Terminal MaterialTin-Plated Copper
Fuse Installation MethodBolt-in
Max Fuse Rating600 A
Body/Insulating MaterialPhenolic
Length6 in
Weight1.5 lb
