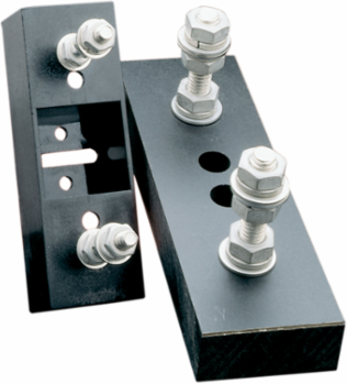

Mersen P266F Fuse Base 1000V 600A 1-pole Bolt-in with Phenolic Insulator, Max Temp 80 C
- MPN: P266F
- UPC: 782001974510
- PPN: FER-P266F
CAD
$394.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen P-Block series for Form 101 fuses are glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. All studs, clips and mounting hardware are tin or zinc-plated
Specifications
Key Specifications
| Rated voltage AC UL | 1000 V |
|---|---|
| Frequency (Hz) | 50/60 Hz |
| ROHS Compliant | Yes |
| Short Circuit Current Rating (SCCR) | 10 kA |
| Number of Poles | 1-Pole |
| Connection/Terminal Type | Stud |
| Torque Rating | 144 lb-in |
| Installation Mounting | Direct Screw Mount |
| Width | 3 in |
| Height | 3 in |
| Rated voltage DC UL | 1000 V |
|---|---|
| Ampere Rating | 600 A |
| AC or DC | AC/DC |
| Fuse Type/Class | Semiconductor |
| Connection/Terminal Material | Tin-Plated Copper |
| Fuse Installation Method | Bolt-in |
| Max Fuse Rating | 600 A |
| Body/Insulating Material | Phenolic |
| Length | 8 in |
| Weight | 1.2 lb |
