Mersen

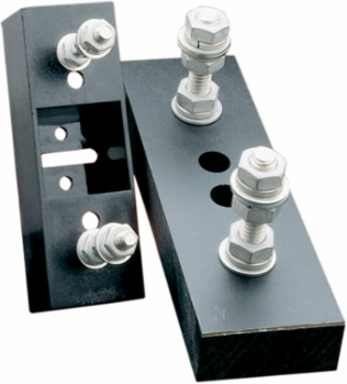

Mersen P243G 1000V 1-Pole Fuse Base 35-600A with Bolt-in Installation

1000V 1-Pole Fuse Base 35-600A with Bolt-in Installation
  • MPN: P243G
  • UPC: 782001974190
  • PPN: FER-P243G

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$257.30/ EA

Description

Mersen P-Block series for Form 101 fuses are glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. All studs, clips and mounting hardware are tin or zinc-plated

Specifications

Specifications

Rated voltage AC UL
1000 V
Frequency (Hz)
50/60 Hz
ROHS Compliant
Yes
Short Circuit Current Rating (SCCR)
10 kA
Number of Poles
1-Pole
Connection/Terminal Type
Stud
Torque Rating
84 lb-in
Installation Mounting
Direct Screw Mount
Width
2.79 in
Height
2.79 in
Rated voltage DC UL1000 V
Ampere Rating600 A
AC or DCAC/DC
Fuse Type/ClassSemiconductor
Connection/Terminal MaterialTin-Plated Copper
Fuse Installation MethodBolt-in
Max Fuse Rating600 A
Body/Insulating MaterialPhenolic
Length4.4 in
Weight0.36 lb
