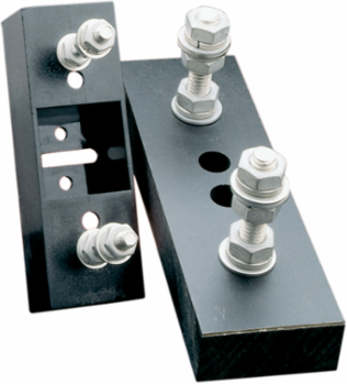

Mersen P243D Semiconductor Fuse Base 1000V 450A 1-Pole Bolt-in with Stud Connection
Mersen P243D Semiconductor Fuse Base 1000V 450A 1-Pole Bolt-in with Stud Connection
- MPN: P243D
- UPC: 782001974169
- PPN: FER-P243D
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$257.30/ EA
Description
Mersen P-Block series for Form 101 fuses are glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. All studs, clips and mounting hardware are tin or zinc-plated
Specifications
Specifications
- Rated voltage AC UL
- 1000 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Short Circuit Current Rating (SCCR)
- 10 kA
- Number of Poles
- 1-Pole
- Connection/Terminal Type
- Stud
- Torque Rating
- 36 lb-in
- Installation Mounting
- Direct Screw Mount
- Width
- 2.79 in
- Height
- 2.79 in
Rated voltage DC UL1000 V
Ampere Rating450 A
AC or DCAC/DC
Fuse Type/ClassSemiconductor
Connection/Terminal MaterialSilver-Plated Copper
Fuse Installation MethodBolt-in
Max Fuse Rating450 A
Body/Insulating MaterialPhenolic
Length4.4 in
Weight0.25 lb
