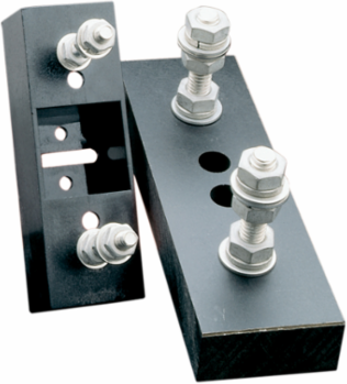

Mersen FH50F5 Fuse Base 1000V 1000A 1-Pole Phenolic Insulator with Stud, Torque 360 lb-in

Fuse Base 1000V 1000A 1-Pole Phenolic Insulator with Stud, Torque 360 lb-in
  • MPN: FH50F5
  • UPC: 782001333539
  • PPN: FER-FH50F5

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$266.49/ EA

Description

Mersen P-Block series for Form 101 fuses are glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. All studs, clips and mounting hardware are tin or zinc-plated

Specifications

Specifications

Rated voltage AC UL
1000 V
Frequency (Hz)
50/60 Hz
ROHS Compliant
Yes
Short Circuit Current Rating (SCCR)
10 kA
Number of Poles
1-Pole
Torque Rating
360 lb-in
Installation Mounting
Direct Screw Mount
Width
2.5 in
Height
3.5 in
Rated voltage DC UL1000 V
Ampere Rating1000 A
AC or DCAC/DC
Fuse Type/ClassSemiconductor
Fuse Installation MethodBolt-in
Max Fuse Rating1000 A
Body/Insulating MaterialPhenolic
Length8 in
Weight1.85 lb
