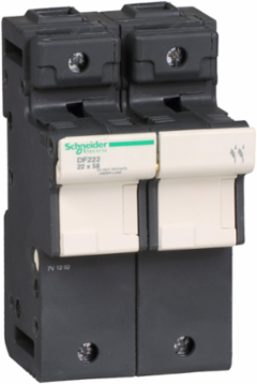

Schneider Electric DF222 Fuse carrier, TeSys DF, 2P, 125A, 690VAC, fuse size 22x58mm
- MPN: DF222
- PPN: SCH-DF222
CAD
$193.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links up to 125A and short circuit current up to 120kA@400V. Compact (70mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 3 units. Multi standards certified (IEC, UL recognized, CSA, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Tunisia, United States
Depth76.5 mm
Physical Attributes
- Fuse Size
- 22 x 58 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fuse Type
- 0-125 A, aM, 0-100 A, gG
- [Ue] Rated Operational Voltage
- 690 V AC, 690 V DC
- Short-circuit Withstand
- 120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-380 kA 690 V IEC 60947-3
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.03710666666666666
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 3.8793333333333337
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Use Carbon Footprint
- 1.85
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- toggle
- Energy Efficiency Optimized
- False
- Mounting Position
- vertical +/- 23°)
- Number Of Poles
- 2P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- fuse carrier
- Quantity Per Set
- set of 3
- Range Of Product
- TeSys fuse carriers
- Software Version
- EIME v5.8.1
- Tightening Torque
- 4 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2010021EN
- Pep Verification Date
- 2020-10-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Width Nominal
- 70 mm
- [Ipk] Rated Peak Withstand Current
- 19 kA with tubular links IEC 60269-1
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Package Weight(Lbs)
- 368.000 g
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 21
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 1.85
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 6.9
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 32.2
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 4.7
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 4.7
- Water Pollution (M3) Distribution [A4]
- 19.32
- Water Pollution (M3) End Of Life [C1-c4]
- 4.439
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyIEC, UL Recognized, CSA, EAC
Connections - Terminalsscrew clamp terminals 2 2.5-25 mm²flexible with or without, screw clamp terminals 1 2.5-35 mm²rigid, screw clamp terminals 2 2.5-25 mm²rigidscrew clamp terminals 1 2.5-35 mm²flexible with or without
Carbon Footprint Of The Distribution Phase [A4]0.12803333333333333, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0010273333333333334, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 kg CO2 eq., 1.85
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV fuse - disconnector
TraceabilityNo
Average Life Duration15 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1919
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeDF22
Device Short NameDF22
Fire Resistance960 °C IEC 60695-2-1
Mounting Support35 mm symmetrical DIN rail
Poles Description2P
Product NameTeSys DF
Protective TreatmentTH
RangeTeSys
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint6 kg CO2 eq.
Fuse Type 9 Fuse TypegG
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Height Nominal127.5 mm
[Ie] Rated Operational Current125 A
[Ui] Rated Insulation Voltage690 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]79.6
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]0.3818
Net Use Of Fresh Water (M3) Operational Energy Use [B6]6.72
Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]0.0046
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]1.495
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]32.2
Water Pollution (M3) Manufacturing [A1-a3]1104
Water Pollution (M3) Operational Energy Use [B6]76.4
Customs Code8536509045
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Compatibility
- DF2FA fuse cartridge, DF2FN fuse cartridge
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 5.895500666666667
- Environmental Disclosure
- ENVPEP2010021EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-10-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Operation-20-60 °C with derating above 20°C, -20-60 °C with derating above 20°C-20-60 °C with derating above 20°C, -20-60 °C with derating above 20°C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-40-80 °C-40-80 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2010021EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- fuse carrier
Range Of ProductTeSys fuse carriers
ETIM
- ETIM 8
- EC002705
ETIM 9EC002705
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
