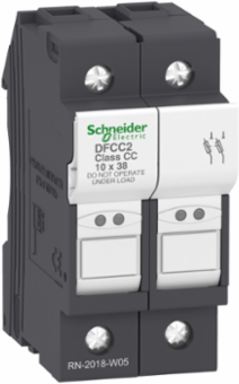

Schneider Electric DFCC2 TeSys DF Modular Fuse Carrier, 2P, 30A, 600V AC, DIN Rail Mountable

  • MPN: DFCC2
  • PPN: SCH-DFCC2
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $85.37

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 30A/600V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (UL recognized, CSA).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance, Tunisia, United States
    Depth61 mm

    Important Information Attributes

    Tightening Torque2 N.m PZ2, 2 N.m flat Ø 5.5 mm
    Connections - Terminalsscrew clamp terminals 2 1-6 mm²flexible with or without, screw clamp terminals 1 1-16 mm²rigid, screw clamp terminals 2 1-6 mm²rigidscrew clamp terminals 1 1-16 mm²flexible with or without
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.008873333333333332
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.9276666666666666
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionPPIBS
    Use Carbon Footprint1.85
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Product Kit IdentifierN
    Control Typetoggle padlockable
    Energy Efficiency OptimizedFalse
    Fuse Type, CC, CC
    Mounting Support35 mm symmetrical DIN rail
    Power Dissipation In W3 W maximum power dissipation by fuse
    Product NameTeSys DF
    Quantity Per Setset of 12
    Range Of ProductTeSys fuse carriers
    Software VersionEIME v5.8.1
    Total Lifecycle Carbon Footprint3 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionProtecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: France
    Energy Model - Use [B6]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Height Nominal79.5 mm
    [Ie] Rated Operational Current30 A
    [Ui] Rated Insulation Voltage600 V AC
    Short-circuit Withstand200 kA 600 V UL 512
    Package Weight(Lbs)88.000 g
    Warranty (In Months)18
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]21
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]6.72
    Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]0.0046
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]0.3575
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]32.2
    Water Pollution (M3) Manufacturing [A1-a3]264
    Water Pollution (M3) Operational Energy Use [B6]76.4
    Certificate AgencyUL Recognized, CSA
    Carbon Footprint Of The Distribution Phase [A4]0.030616666666666664, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.00024566666666666666, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 kg CO2 eq., 1.85
    Local Publishable Date2026-06-27
    Stocking FlagN
    Device TypeLV equipment - LV fuse - disconnector
    TraceabilityNo
    Average Life Duration15 year(s)
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1919
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Compatibility CodeDFCC
    Device Short NameDFCC
    Fire Resistance960 °C IEC 60695-2-1
    Mounting Positionvertical +/- 23°)
    Number Of Poles2P
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typefuse carrier
    RangeTeSys
    ReturnabilityYes
    Sustainable PackagingNo
    Utilisation CategoryAC-20B IEC 60947-3
    Pep CodeENVPEP2010021EN
    Pep Verification Date2020-10-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Width Nominal35 mm
    [Ue] Rated Operational Voltage600 V AC
    [Uimp] Rated Impulse Withstand Voltage6 kV
    Nbr. Of Units In Pkg.1
    Take-backNo
    Air Pollution (M3) Operational Energy Use [B6]79.6
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]1.85
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]6.9
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]32.2
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]4.7
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]4.7
    Water Pollution (M3) Distribution [A4]4.62
    Customs Code8536100040

    Environment Attributes Main

    China Rohs RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Storage-40-70 °C-40-70 °C
    Eu Rohs DirectiveCompliant
    Operating Altitude0...6561.68 ft (0...2000 m) without derating
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2020-10-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Operation-40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C-40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C
    Reach Free ShvcYes
    Toxic Heavy Metal FreeYes
    Carbon Footprint2.8174023333333333
    Environmental DisclosureENVPEP2010021EN
    Ip Degree Of ProtectionIP20
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2010021EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typefuse carrier
    Range Of ProductTeSys fuse carriers

    ETIM

    ETIM 8EC002705
    ETIM 9EC002705

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
