TeSys DF Fuse Carrier, 2P, 32A, 690V AC, 10x38mm Fuse Size
Schneider Electric

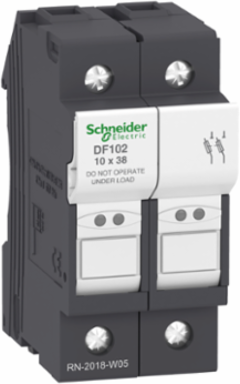

Schneider Electric DF102 TeSys DF Fuse Carrier, 2P, 32A, 690V AC, 10x38mm Fuse Size

  • MPN: DF102
  • PPN: SCH-DF102
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $39.22

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Mexico, United States
    Depth61 mm

    Physical Attributes

    Fuse Size
    10 x 38 mm

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Fuse Type
    0-32 A, aM, 0-32 A, gG
    Utilisation Category
    AC-20B IEC 60947-3, DC-20B IEC 60947-3
    [Ue] Rated Operational Voltage
    690 V AC, 690 V DC
    Short-circuit Withstand
    120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-3
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.009075
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.9 kg CO2 eq., 0.94875
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    PPIBS
    Use Carbon Footprint
    1.85
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Control Type
    toggle padlockable
    Energy Efficiency Optimized
    False
    Mounting Position
    vertical +/- 23°)
    Number Of Poles
    2P
    Poles Description
    2P
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    fuse carrier
    Range
    TeSys
    Returnability
    Yes
    Sustainable Packaging
    No
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP2010021EN
    Pep Verification Date
    2020-10-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Installation [A5]
    Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Width Nominal
    35 mm
    [Ith] Conventional Free Air Thermal Current
    32 A 20 °C
    [Uimp] Rated Impulse Withstand Voltage
    6 kV
    Package Weight(Lbs)
    88.000 g
    Warranty (In Months)
    18
    Air Pollution (M3) Operational Energy Use [B6]
    79.6
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
    1.85
    Net Use Of Fresh Water (M3) Manufacturing [A1-a3]
    0.0057
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    0.51
    Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]
    0.0046
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    32.2
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    44.542
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    4.7
    Water Pollution (M3) Distribution [A4]
    4.725
    Customs Code
    8536509045
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Tightening Torque2.2 N.m PZ2, 2.2 N.m flat Ø 5.5 mm
    Certificate AgencyIEC, UL Recognized, CSA, CCC, EAC, DNV-GL
    Connections - Terminalsscrew clamp terminals 2 1-6 mm²flexible with or without, screw clamp terminals 1 1-16 mm²rigid, screw clamp terminals 2 1-6 mm²rigidscrew clamp terminals 1 1-16 mm²flexible with or without
    Carbon Footprint Of The Distribution Phase [A4]0.0313125, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.00025125, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 kg CO2 eq., 1.85
    Local Publishable Date2026-06-27
    Stocking FlagN
    Device TypeLV equipment - LV fuse - disconnector
    TraceabilityNo
    Average Life Duration15 year(s)
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1919
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Compatibility CodeDF10
    Device Short NameDF10
    Fire Resistance960 °C IEC 60695-2-1
    Mounting Support35 mm symmetrical DIN rail
    Overvoltage CategoryIII
    Power Dissipation In W3 W maximum power dissipation by fuse
    Product NameTeSys DF
    Quantity Per Setset of 6
    Range Of ProductTeSys fuse carriers
    Software VersionEIME v5.8.1
    Total Lifecycle Carbon Footprint3 kg CO2 eq.
    Fuse Type 9 Fuse TypegG
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionProtecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: France
    Energy Model - Use [B6]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Height Nominal79.5 mm
    [Ie] Rated Operational Current32 A 400 V AC
    [Ui] Rated Insulation Voltage690 V AC
    Nbr. Of Units In Pkg.1
    Take-backNo
    Air Pollution (M3) Manufacturing [A1-a3]156.75
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]21
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]2.85
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]6.72
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]6.9
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle45.8545
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]4.7
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]32.2
    Water Pollution (M3) Manufacturing [A1-a3]270
    Water Pollution (M3) Operational Energy Use [B6]76.4

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Product Compatibility
    DF2CA fuse cartridge, DF2CN fuse cartridge
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    2.8393887500000003
    Environmental Disclosure
    ENVPEP2010021EN
    Ip Degree Of Protection
    IP20
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2010021EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Operation-40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C-40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Storage-40-70 °C-40-70 °C
    Eu Rohs DirectiveCompliant
    Operating Altitude0...6561.68 ft (0...2000 m)
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2020-10-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    fuse carrier
    Range Of ProductTeSys fuse carriers

    ETIM

    ETIM 8
    EC002705
    ETIM 9EC002705

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
