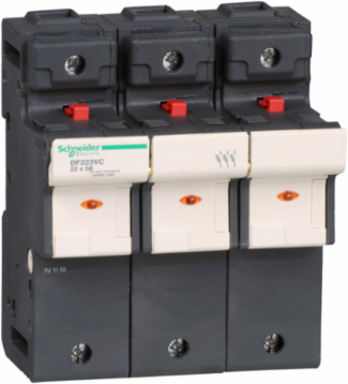

Schneider Electric DF223VC TeSys DF Fuse Carrier, 3P, 125A, 690V, 22x58mm Fuse Size
- MPN: DF223VC
- PPN: SCH-DF223VC
CAD
$456.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links with stricker up to 125A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF22AM* (to be ordered separately), it provides blown fuse indication by LED. Compact (105mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with stricker (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Tunisia
Depth76.5 mm
Physical Attributes
- Fuse Size
- 22 x 58 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fuse Type
- 0-100 A, gG, 0-125 A, aM
- [Ue] Rated Operational Voltage
- 690 V AC, 690 V DC
- Short-circuit Withstand
- 120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-380 kA 690 V IEC 60947-3
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.056264999999999996
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 6 kg CO2 eq., 5.88225
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1919
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- DF22
- Device Short Name
- DF22
- Fire Resistance
- 960 °C IEC 60695-2-1
- Mounting Position
- vertical +/- 23°)
- Number Of Poles
- 3P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- fuse carrier
- Quantity Per Set
- set of 2
- Range Of Product
- TeSys fuse carriers
- Software Version
- EIME v5.8.1
- Tightening Torque
- 4 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2010021EN
- Pep Verification Date
- 2020-10-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: France
- Energy Model - Use [B6]
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Height Nominal
- 127.5 mm
- [Ie] Rated Operational Current
- 125 A
- [Ui] Rated Insulation Voltage
- 690 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Distribution [A4]
- 23.9475
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 124.8204
- Water Pollution (M3) Distribution [A4]
- 29.295
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyIEC, UL Recognized, CSA, EAC
Connections - Terminalsscrew clamp terminals 2 2.5-25 mm²flexible with or without, screw clamp terminals 1 2.5-35 mm²rigid, screw clamp terminals 2 2.5-25 mm²rigidscrew clamp terminals 1 2.5-35 mm²flexible with or without
Carbon Footprint Of The Distribution Phase [A4]0.1941375, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00155775, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 kg CO2 eq., 2.775000000000001
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV fuse - disconnector
TraceabilityNo
Average Life Duration15 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typetoggle
Energy Efficiency OptimizedFalse
Local Signallingblown fuse indication
Mounting Support35 mm symmetrical DIN rail
Poles Description3P
Product NameTeSys DF
Protective TreatmentTH
RangeTeSys
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint9 kg CO2 eq.
Fuse Type 9 Fuse TypeaM
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh18.9216
Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Width Nominal105 mm
[Ipk] Rated Peak Withstand Current19 kA with tubular links IEC 60269-1
[Uimp] Rated Impulse Withstand Voltage8 kV
Package Weight(Lbs)556.000 g
Warranty (In Months)18
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]17.67
Water Pollution (M3) Manufacturing [A1-a3]1674
Customs Code8536509045
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Compatibility
- DF3FA fuse cartridge striker, DF3FN fuse cartridge strikerDF22AM auxiliary contact block
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 8.909210250000001
- Environmental Disclosure
- ENVPEP2010021EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-10-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Operation-20-60 °C with derating above 20°C, -20-60 °C with derating above 20°C-20-60 °C with derating above 20°C, -20-60 °C with derating above 20°C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-40-80 °C-40-80 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2010021EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- fuse carrier
Range Of ProductTeSys fuse carriers
ETIM
- ETIM 8
- EC002705
ETIM 9EC002705
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
