TeSys DF 3P+N Fuse Carrier, 125A, 690VAC, 22x58mm Fuse Size
Schneider Electric

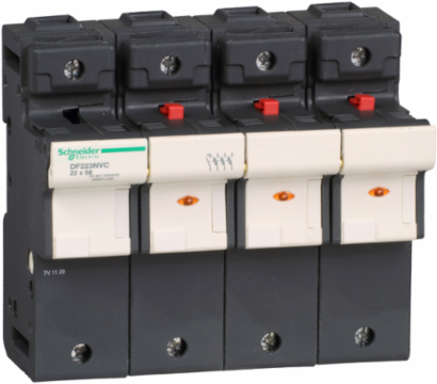

Schneider Electric DF223NVC TeSys DF 3P+N Fuse Carrier, 125A, 690VAC, 22x58mm Fuse Size

  • MPN: DF223NVC
  • PPN: SCH-DF223NVC
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $619.11

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    TeSys DF modular fuse carrier, 4 poles (3P+N), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links with stricker up to 125A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF22AM* (to be ordered separately), it provides a Neutral pole fitted with a locked tubular link, blown fuse indication by LED. Compact (140mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with stricker (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 1 unit. Multi standards certified (IEC, UL recognized, CSA, EAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, Tunisia
    Depth76.5 mm

    Physical Attributes

    Fuse Size
    22 x 58 mm

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Fuse Type
    0-100 A, gG, 0-125 A, aM
    [Ue] Rated Operational Voltage
    690 V AC, 690 V DC
    Short-circuit Withstand
    120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-380 kA 690 V IEC 60947-3
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.1 kg CO2 eq., 0.08359083333333332
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    9 kg CO2 eq., 8.739041666666667
    Local Data Status
    Publishable
    Return Indicator
    N
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    PPIBS
    Use Carbon Footprint
    3.7
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Control Type
    toggle
    Device Short Name
    DF22
    Fire Resistance
    960 °C IEC 60695-2-1
    Mounting Position
    vertical +/- 23°)
    Number Of Poles
    3P + N
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Product Or Component Type
    fuse carrier
    Quantity Per Set
    set of 1
    Range Of Product
    TeSys fuse carriers
    Software Version
    EIME v5.8.1
    Tightening Torque
    4 N.m
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP2010021EN
    Pep Verification Date
    2020-10-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Installation [A5]
    Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Width Nominal
    140 mm
    [Ipk] Rated Peak Withstand Current
    19 kA with tubular links IEC 60269-1
    [Uimp] Rated Impulse Withstand Voltage
    8 kV
    Package Weight(Lbs)
    833.000 g
    Warranty (In Months)
    18
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
    42
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]
    13.44
    Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]
    0.0092
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    9.4
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    9.4
    Water Pollution (M3) Distribution [A4]
    43.5225
    Customs Code
    8536509045
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Certificate AgencyIEC, UL Recognized, CSA, EAC
    Connections - Terminalsscrew clamp terminals 2 2.5-25 mm²flexible with or without, screw clamp terminals 1 2.5-35 mm²rigid, screw clamp terminals 2 2.5-25 mm²rigidscrew clamp terminals 1 2.5-35 mm²flexible with or without
    Carbon Footprint Of The Distribution Phase [A4]0.28842291666666664, 0.3 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0023142916666666668, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]4 kg CO2 eq., 3.7
    Local Publishable Date2026-06-27
    Stocking FlagY
    Device TypeLV equipment - LV fuse - disconnector
    TraceabilityNo
    Average Life Duration15 year(s)
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1919
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Compatibility CodeDF22
    Device Compositiontubular link locked in Neutral pole
    Energy Efficiency OptimizedFalse
    Local Signallingblown fuse indication
    Mounting Support35 mm symmetrical DIN rail
    Poles Description3P + N
    Product NameTeSys DF
    Protective TreatmentTH
    RangeTeSys
    ReturnabilityNo
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint13 kg CO2 eq.
    Fuse Type 9 Fuse TypeaM
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionProtecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: France
    Energy Model - Use [B6]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Height Nominal127.5 mm
    [Ie] Rated Operational Current125 A
    [Ui] Rated Insulation Voltage690 V AC
    Nbr. Of Units In Pkg.1
    Take-backNo
    Air Pollution (M3) Operational Energy Use [B6]159.2
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]3.7
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]13.8
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]64.4
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]64.4
    Water Pollution (M3) Manufacturing [A1-a3]2487
    Water Pollution (M3) Operational Energy Use [B6]152.8

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Product Compatibility
    DF3FA fuse cartridge striker, DF3FN fuse cartridge strikerDF22AM auxiliary contact block
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    12.813369708333335
    Environmental Disclosure
    ENVPEP2010021EN
    Ip Degree Of Protection
    IP20 conforming to IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Verification Date
    2020-10-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Operation-20-60 °C with derating above 20°C, -20-60 °C with derating above 20°C-20-60 °C with derating above 20°C, -20-60 °C with derating above 20°C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Storage-40-80 °C-40-80 °C
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2010021EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    fuse carrier
    Range Of ProductTeSys fuse carriers

    ETIM

    ETIM 8
    EC002705
    ETIM 9EC002705

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
