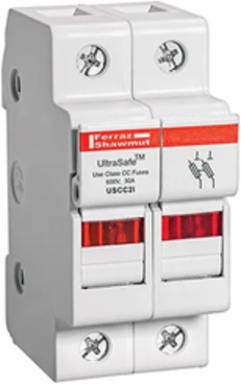

Mersen USCC2I UltraSafe Modular 600V 30A 2-Pole Fuse Holder with Indicator, IP20, Clip-in Mounting
- MPN: USCC2I
- UPC: 782001829896
- PPN: FER-USCC2I
CAD
$37.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mersen USCC Series UltraSafe Modular Fuse holders introduce a new level of safety for Class CC 1-1/2" x 13/32" AC and DC-rated fuses up to 30 amperes. UltraSafe holders qualify as “Finger-safe” under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multi-pole units can also be field assembled by ordering pin-tie handles. UltraSafe holders save up to 15% mounting space and any combination can be snapped onto 35mm DIN-rail for extra savings in panel building time. UltraSafe holders with Class CC fuses chosen for Type “2” No Damage protection give one of the safest protection packages in the industry. UltraSafe body material is tough and durable polyamide, with exceptional insulating properties.
Features
- The USCC2I is a 2-pole, 30-Amp finger-safe fuse holder designed specifically for Class CC fuses. It provides a compact, DIN-rail mounted solution for protecting single-phase branch circuits, control transformers, and industrial heaters in both automation and power distribution panels.
- This model features a built-in blown-fuse indicator light on each pole. When a fuse clears, an integrated LED illuminates, allowing maintenance technicians to identify the faulted circuit at a glance without opening the holder or using a multimeter. This dramatically reduces troubleshooting time and machine downtime.
- Engineered with an IP20 finger-safe rating, the USCC2I ensures that personnel cannot accidentally touch live electrical parts during operation or maintenance. The "no-tool" fuse replacement design utilizes a pull-out drawer system, making fuse changes fast, easy, and exceptionally safe compared to traditional open-style fuse blocks.
- The 2-pole design is highly space-efficient, occupying a very slim footprint on a standard 35mm DIN rail. This allows for higher component density within your enclosure, which is critical for modern, compact control cabinet designs where rail space is often limited.
- Featuring robust box-style pressure plate terminals, the USCC2I provides a secure, vibration-resistant connection for #14 to #6 AWG copper wire. This high-torque clamping mechanism prevents wire pull-out and ensures consistent electrical conductivity, even in high-vibration industrial environments.
Documentation & Downloads
Specifications
Additional
| Voltage | 600 V AC/DC |
|---|---|
| Number of Poles | 2-Pole |
| Frequency | 50/60 Hz |
| Indication System | LED |
| Width | 1.38 in |
| Weight | 0.28 lb |
| Torque Rating | 15 lb-in |
| Body/Insulating Material | Glass Filled Polycarbonate |
| Compliance | UL Listed, CSA Certified, IEC 60269-2-1, IEC 60947-3, RoHS Compliant |
| Ampere Rating | 30 A |
|---|---|
| Short Circuit Current Rating (SCCR) | 200 kA |
| Fuse Class | Class CC |
| Length | 3.07 in |
| Height | 2.32 in |
| Installation Mounting | DIN Rail Clip-in |
| Wiring Range | Cu #6-14 AWG single conductor |
| Flammability Rating | UL 94-V0 |
