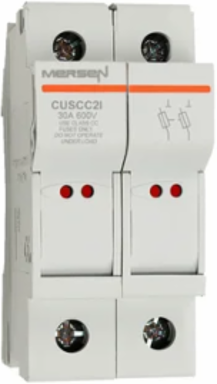

Mersen M1062795 Modulostar 2-Pole Fuse Holder, 30 A, 600 V, IP20, DIN Rail Mount
- MPN: M1062795
- PPN: FER-M1062795
CAD
$37.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mersen’s innovative Modulostar CUSCC fuse holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modulostar CUSCC fuse holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. Made of tough and durable thermoplastic or thermoset material. Recommended for use with Mersen Class CC fuse-links: ATDR, ATMR, and ATQR.
Features
- Rated for up to 700 Volts, this fuse holder is the industrial standard for 600V 3-phase systems and high-voltage DC bus applications. Its high dielectric strength provides critical insulation between the live fuse and the mounting backplate, preventing flashovers and ensuring the safety of your control cabinet.
- Unlike spring-clip holders that can loosen over time due to vibration, the M1062795 utilizes a stud-mount (bolt-in) design. This creates a high-torque mechanical bond between the fuse blade and the holder, minimizing contact resistance and preventing the "hot spots" that lead to premature fuse failure in heavy-duty machinery.
- The base is molded from high-strength, glass-reinforced polycarbonate or polyester with excellent thermal stability. This "cool-running" material maintains its structural integrity even when the fuse is operating at full load, making it ideal for the confined, high-temperature environments found in VFD enclosures and UPS cabinets.
- This fuse holder is CSA Certified and UL Recognized, ensuring it complies with the rigorous safety standards required by the Canadian Electrical Code (CEC). Using a certified Mersen holder ensures that your equipment remains in compliance with workplace safety regulations and insurance requirements.
Documentation & Downloads
Specifications
Additional
| Number of Poles | 2-Pole |
|---|---|
| Voltage | 600 V AC/DC |
| Fuse Class | Class CC |
| Torque Rating | 17.7 lb-in (2 Nm) |
| Width | 1.38 in |
| Mounting | DIN rail acc. EN 60715 |
| RoHS Compliance | Yes |
| Operating Temperature | -40 C to 70 C with carrier, -50 C to 90 C without carrier |
| Voltage Limit for Indicator | 50 to 700 V AC/DC |
| Amperage | 30 A |
|---|---|
| Short Circuit Current Rating (SCCR) | 200 kA |
| AC or DC | AC/DC |
| Length | 2.41 in |
| Height | 3.12 in |
| Body Material | PA6 (Thermoplastic) |
| Indication System | Visual Indicator |
| Storage Temperature | -40 C to 70 C |
