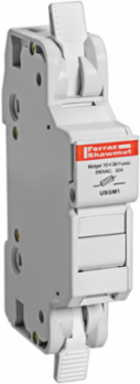

Mersen USGM1I Fuse Holder 600V 30A Midget 1-pole with Light Indicator and Spring Pressure Connection
Mersen USGM1I Fuse Holder 600V 30A Midget 1-pole with Light Indicator and Spring Pressure Connection
- MPN: USGM1I
- UPC: 782001437923
- PPN: FER-USGM1I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$57.49/ EA
Description
Mersen’s USGM series fuse holders deliver the ultimate ease-of-use, time (labor) saving and reliable solution available in the marketplace. Mersen is the first manufacturer to offer screw-less, spring pressure, wire termination technology into a power fuse holder, delivering the best of both technologies to its customers. Now you can experience the combined benefits of safety, ease-of-use, labor savings and reliability of UltraSafe fuse holders and spring pressure technology.
Specifications
Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Midget
- Fuse Type/Class
- Midget
- Indication System Type
- LED
- Wiring range
- #6 to #14 Solid or Stranded
- Max Fuse Rating
- 30 A
- Body/Insulating Material
- Polyamide
- Length
- 4.13 in
- Weight
- 0.14 lb
Rated voltage DC UL600 V
Ampere Rating30 A
AC or DCAC/DC
Short Circuit Current Rating (SCCR)200 kA
Indication SystemYes
Number of Poles1-Pole
Fuse Installation MethodClip-in
Installation MountingDIN Rail
Width0.68 in
Height2.17 in
